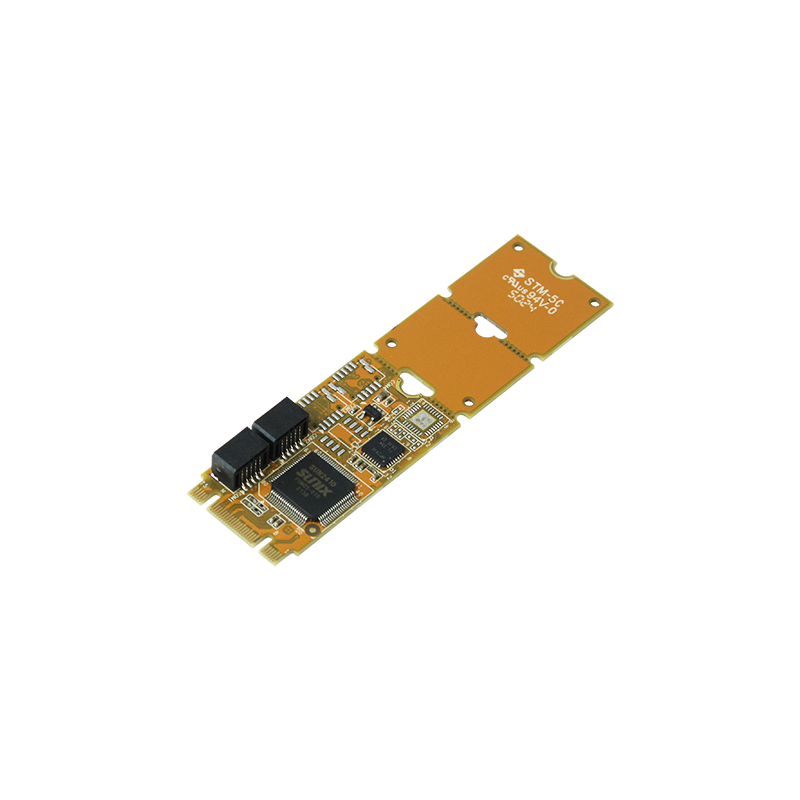

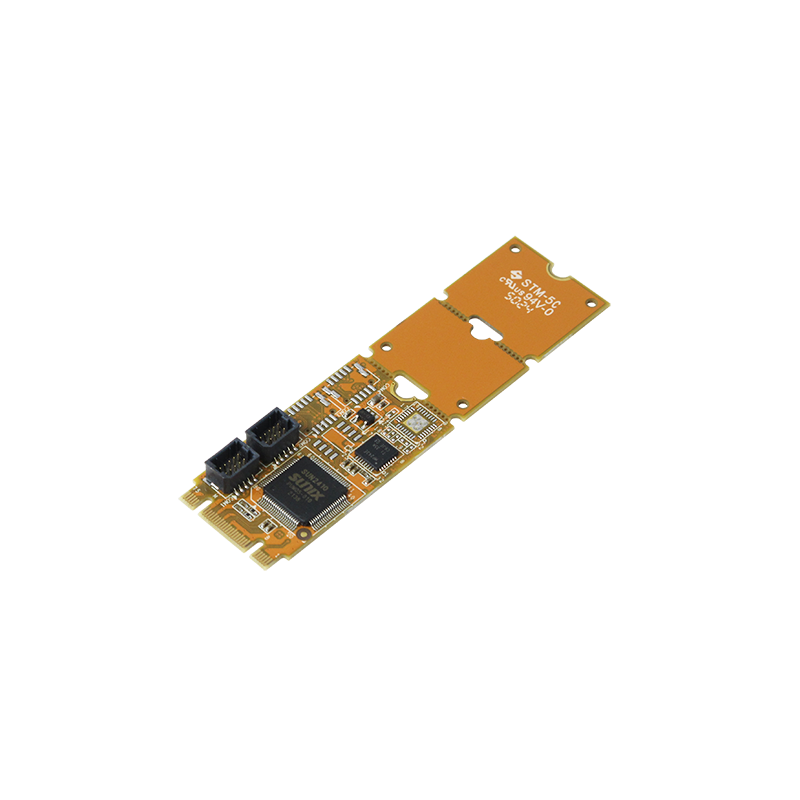

2-Port RS-232 PCI-Express Serial Card, M.2, 15KV ESD Protection, Type 2242/2260/2280 Angled-90°
Suitable for M.2 slot type 2242/2260/2280, adjustable with Key-M or Key-B based on PCI Express communication.
Expands 2 independent RS-232 serial ports with communication speeds of up to 460.8 Kbps.
Designed to meet PCI Express Base Specification Revision 1.1.
Automatic flow control on the chip guarantees no data loss.
Built-in 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.
M.2 (2242/2260/2280 type, B+M)
With 90˚ connector in relation to the PCB
880.00 SEK
Excl. VAT
Quantity
Physically in stock
close
2 ports RS-232 PCI-Express Serial M.2 Card, allows users to expand two RS-232 ports on M.2 (Type 2242/2260/2280 adjustable) with Key-M or Key-B based PC-based system. The RS-232 COM ports can be attached to a housing or slot bracket. Each serial port achieves data rates up to 460.8Kbps and utilizes UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. Each COM port is provided with ±15KV IEC61000-4-2 ESD protection, and it is the best serial communicating solution for commercial and industrial automation applications.
Interface RS-232 Baud rate 50bps ~460.8Kbps
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
ESD Protection ±15KV Air / ±8KV Contact
PCB Connector 2 pcs x WAFER 2x5P pitch 1.0mm (180°)
Cable 2 pcs x serial RS-232 D-Sub 9 pin male with nuts on cable
Driver Support
Windows Client 10 (X86/X64) / 11
Windows Server 2022
Linux Linux 2.x / 3.x / 4.x / 5.x / 6.x
Regulatory Approvals
Hardware CE, FCC, VCCI, BSMI
Software Microsoft WHQL Windows
• Windows Client: 10 (X86/X64) / 11
• Windows Server: 2022
Operation Temperature 0 to 70°C (32 to 158°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
PCB Dimension 22 x 80 mm
