12-Port Industrial PoE + Gigabit Unmanaged Switch

8 x 10/100 / 1000Base-T (X) RJ45
PoE (P.S.E.) Ports
IEEE 802.3at
Up to 30 Watts Per Port
9.6Kbytes Jumbo Frame
Supply Voltage, Dual Wide Range 12 ~ 36VDC
Auto-Negotiation & amp; Auto-MDI / MDI-X
Store-and-Forward Transmission, Flow Control, IP-30 Housing Design
DIN Rail and Wall Mounting for UL Class I, Division 2 Certified

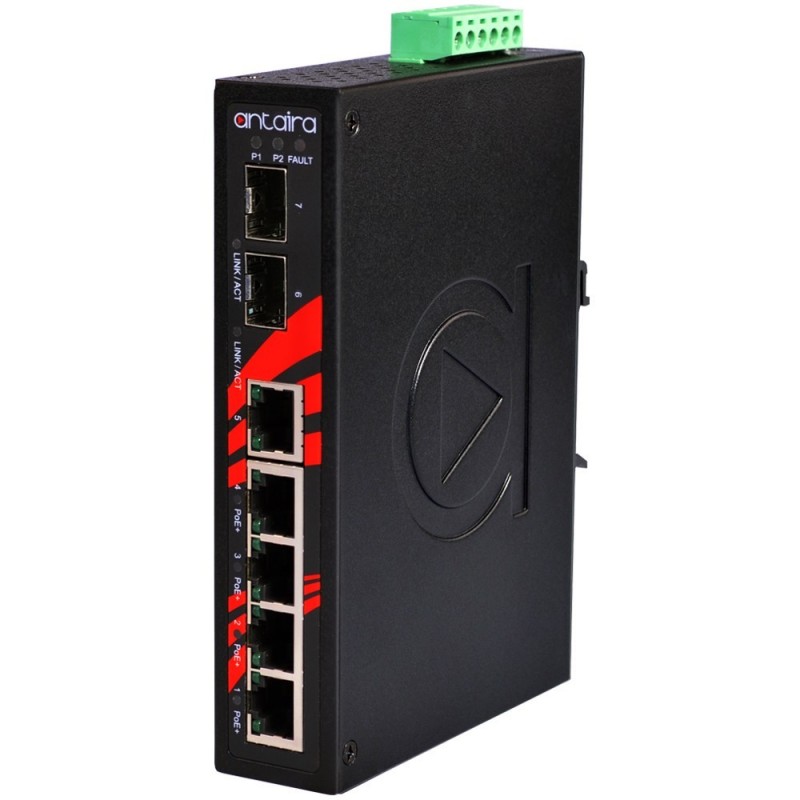

4 x 10/100 / 1000Mbit, PoE + (30W) IEEE 802.3at
1 x 10/100 / 1000Mbit
2 x 100 / 1000Mbit SFP slot
14Gbps Back Plane
8K MAC Address Table
10.0 Kbytes Jumbo Frame
Overvoltage 2kV DC
ESD Protection 6kV DC
Redundant Power Input Design: 48 - 55VDC
1 Relay Output for Power Error Alarm
IP30 Rugged Metal Cabinet
DIN-Rail and Wall Mount including
Extended operating temperature: -40 - + 85 ° C

8 x 10/100 / 1000Tx RJ45 for PoE + (30W / port) IEEE 802.3at for 2 x 100/1000 SFP ports for Auto MDI / MDI-X Function for Store-and- Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC for UL Class I , Division 2 Certified
Supply Voltage: 48 ~ 55VDC
Built-in Relay Output for Power Failure for IP30 Rugged Metal Case Design for DIN Rail and Wall Mounting - Operating Temperature: -40 ° to 75 ° C

8 x 10/100 / 1000Tx RJ45
PoE+ (30W / port)
4 x 100/1000 SFP Ports
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Supply Voltage: 48 ~ 55VDC
Built-in Relay Output for Power Failure
IP30 Rugged Metal Case Design
DIN Rail and Wall Mounting
Operating Temperature: -40 ° to 75 ° C

12 x 10/100 / 1000Tx RJ45
PoE+ (30W / port) IEEE 802.3at
4 x 100/1000 SFP Ports
Store-and-Forward Switching Architecture
8K MAC Address Table
12.2Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Supply Voltage: 48 ~ 55VDC
Built-in Relay Output for Power Failure
IP30 Rugged Metal Case Design
DIN- Rail and Wall Mounting
Operating Temperature: -40 ° to 75 ° C

8 x 10/100 / 1000Tx RJ45 (30W / port)
4 x 100/1000 SFP Ports
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Supply Voltage: 48 ~ 55VDC
Built-in Relay Output to Power Failure
IP30 Rugged Metal Case Design
DIN Rail and Wall Mounting
Operating Temperature STD: -10 ° to 70 ° C

8 x ports 10/100 / 1000Tx, IEEE 802.3at Compliant PoE +
Redundant supply voltage: 24 - 55VDC
Built-in Power Booster Design for PoE / PoE +
Built-in relay output - Power / PoE Failure warning
Bypass Design for Daisy Chain Redundancy
Digital Input / Digital Output
IP67 Rugged Waterproof Metal Design with M12 X-Coded Connection to Ensure Close and Robust Connection
Wall Mounting
Operating Temperature: -10 ° to 60 ° C
Dimensions: 253.57 x 122 x 116.12 mm (W x H x D)

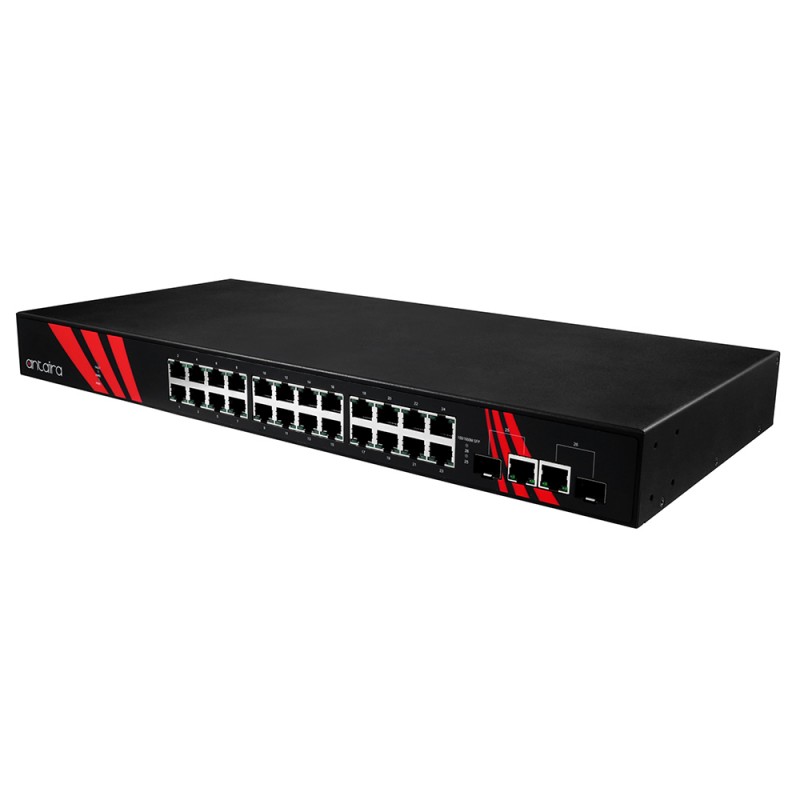

24 x 10/100/1000Tx RJ45 (30W/port) IEEE 802.3at PoE+
2 x Gigabit combo (2 x RJ45, 2 x FTP)
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Power supply: 48~55VDC
Built-in relay Output for Power Failure
1U 19" Rackmount design
Operating temperature STD: -10° to 70° C
