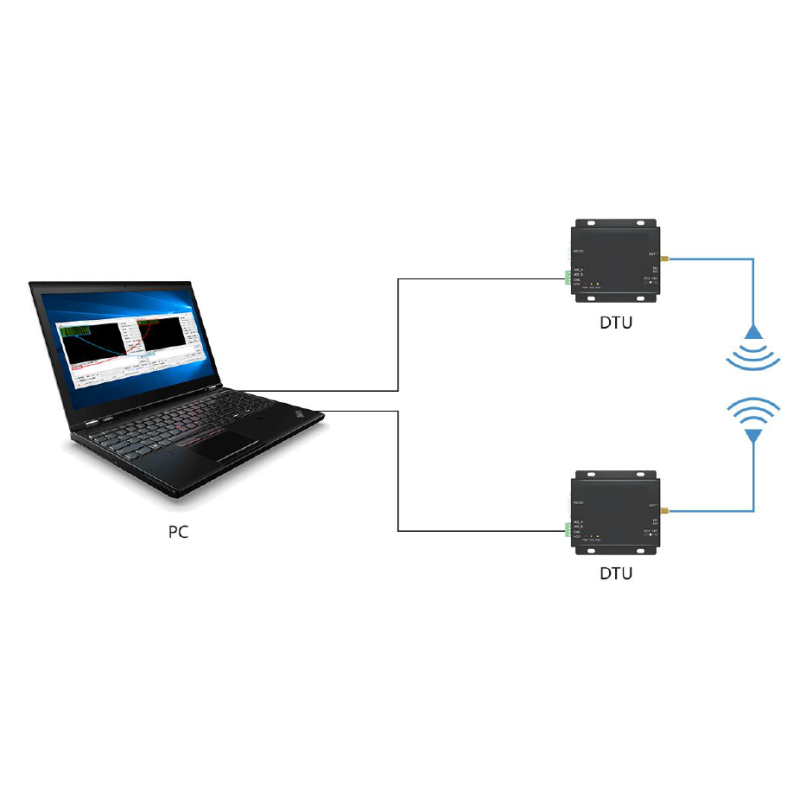

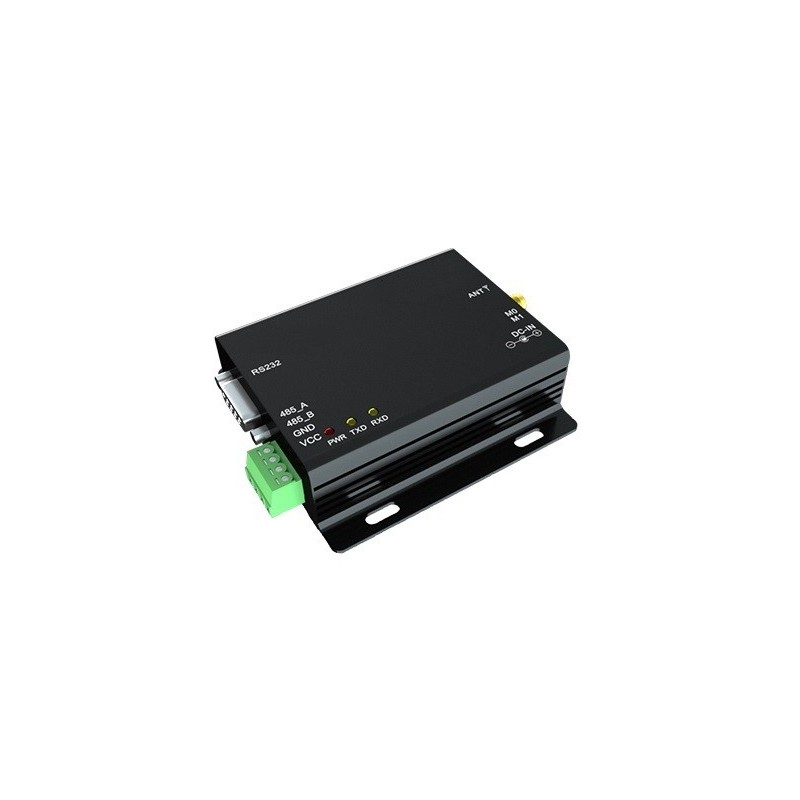

LoRa Wireless Bridge 433MHz, RS232/RS485 transparent transmission, set of 2 devices

LoRaWan transceiver with 2 x digital inputs
LoRaWan transceiver with 2 x analog inputs 4-20mA / 0-10V
LoRaWan transceiver with relay output (SPDT)
Supports LoRa Class C protocol
Serial port: RS232 or RS485 (Transparent data)
Collect data sent to Lora-Gateway Controller
Frequency: 868MHz - Range Up to 10 km
Configuration Port: Micro USB
Operating temperature: -40 - +70°C
Supply voltage: 5 - 24VDC
Dim: 120 x 120 x 56 mm

LoRaWan with stable connection to IoT units
4 x 10/100 / 1000Base-T RJ45 LAN ports
1 x 10/100 / 1000Base-T RJ45 WAN port
1 x LoRa antenna - 2DBI with SMA male
1 x Serial console Port (RS485)
2 x DI / DO and 1 serial port (RS485) for Modbus applications
For EU 868MHz (SUB 1G) Frequency
8 Programmable parallel demodulation paths
static IP / PPPoE / DHCP client for WAN
DHCP server / NTP client for LAN
Protocols: TCP / IP, UDP, ARP, IPv4, IPv6
port forwarding; Qos; DMZ; IGMP; UPnP; SNMPv1, V2C, V3
Dim: 135 x 135 x 50 mm

LoRaWan with stable connection to IoT units
Dual Band WiFi - 2 antennas with RSMA male
3 x 10/100/1000Base-T RJ45 LAN ports
1 x 10/100/1000Base-T RJ45 Wan-Port
1 x LoRa Antenne - 2DBI with SMA male
2 x DI / DO and 1 serial port (RS485) for Modbus applications
to EU 868MHz (SUB 1G) Frequency
8 Programmable Parallel Demodulation Roads
Static IP / PPPoE / DHCP Client for WAN
DHCP Server / NTP Client for LAN
Protocols: TCP / IP, UDP, ARP, IPv4, IPv6
port forwarding; Qos; DMZ; IGMP; UPnP; SNMPv1, V2C, V3
Dim: 135 x 135 x 50 mm

Long-range LoRa wireless communication (non-LoRaWAN)

RS-485 MODBUS RTU protocol

1x Analog input 0–10V / 0–20mA / 4–20mA / ADC (0–10V)

1x Analog output sync-capable

1x Digital Input High/Low signal detection

1x Digital Output Supports PWM / Latch mode

AES-128/256 encrypted transmission

Rugged IP68-rated waterproof housing

Wide -40°C to 85°C operating temperature

Ideal for industrial, agricultural, and environmental IoT

Low power for remote or battery-powered deployments

Outdoor gateway

Protocol LoRa (not LoRaWAN)

Frequency range 410–525 MHz / 862–1020 MHz (depending on local regulation)

Sensitivity Up to –136 dBm @ SF=7 / 10.4 kHz bandwidth

RF power Max. 2 W

Interface RS-485 × 1 / Analogue or Digital Input × 5 / Digital Output × 5

Serial Baud Rate 1200–230 400 bps

Encryption AES-128 / AES-256

Analog Input 0–10 V / 0–20 mA / 4–20 mA / ADC (0–10 V)

Digital Input High/Low signal rating

Digital Output PWM / Latch mode

Topology types Broadcast / Group / Peer-to-Peer

lestariautomation.com

Material Flame retardant

Dimensions 10 × 10 × 4.8 cm (without antenna and external connections)

Weight 250g

IP rating IP68

Operating temperature –40°C to 85°C

Input supply 12–36 V DC / 1 A

Output supply Main port: 10 V DC / 100 mA; AUX2–AUX5: 10 V DC / 50 mA

Power consumption Receiving: 24 V 15 mA @868/920 MHz, Sending: 24 V 400 mA @868/920 MHz (2 W)

With set of 2 transparent RS485 transmission (NOTE not for Digital I/O and Analog I/O)
