Intel® Core™ i7-1255U (Alder Lake, 7nm)
Intel® Iris® Xe Graphics
Intel® Alder Lake Platform
TDP 15W
1 × DDR5 SO-DIMM, max 64 GB DDR5
1 × M.2 NVMe/NGFF 2280 SSD
1 × SATA 3.0 (6Gb/s)
2 × Gigabit LAN (Realtek RTL8111)
2 × HDMI 1.4 (up to 4K 60Hz)
Audio Intel® High Definition Audio, microphone input and SPK output
4 × USB 3.0
4 × USB 2.0
2 × RS-232 (DB9)
1 × mini-PCIe for Wi-Fi/Bluetooth or 3G/4G module (only one active at a time, must be ordered separately)
Built-in SIM card slot (for 3G/4G module)
Fanless aluminum design
Power supply DC 12–19 V (recommended 19 V / 4.74 A)
Power consumption Typical < 20 W
Dimensions (W×D×H) 193.9 × 127 × 57.2 mm
Weight 1.0 kg net / 1.5 kg gross
Color and material Black anodized aluminum, fully enclosed housing
Operating temperature –20 °C to +60 °C (requires special RAM, SSD must be specified if the PC is to be delivered as a complete unit)
Humidity 10–90% RH (non-condensing)
Features Wake-on-LAN, Automatic Wake-up (AWAL), Watchdog, RTC
Supported operating systems: Windows 10/11, Linux, WES 7/10
Mounting VESA/wall mounting via 4 mounting brackets
Certifications CE, FCC, RoHS
| CPU | Intel® Core™ i7-1255U (Alder Lake, 7nm) – 10 Cores (2P + 8E), 12 Threads, 1.7 GHz base / up to 4.7 GHz Turbo |
|---|---|
| Memory Type | DDR5 |
| Max. Memory Capacity | 64 |
| Chipset | Intel® Alder Lake platform |
| Power Input | DC 12~19V |
| USB | 4 × USB 3.0 ; 4 × USB 2.0 |
| Serial | 2 × RS-232 (DB9) |
| Operating Temp. | –20 °C to +60 °C |
| Andet | Wake-on-LAN, Auto Power On (AWAL), Watchdog, RTC |
| Ethernet | 2 × Gigabit LAN (Realtek RTL8111) |
| Forsyning | DC 12–19 V (recommended 19 V / 4.74 A) |
| Køling | Fanless design |
| Luftfugtighed | 10–90% RH (non-condensing) |
| Lyd | Intel® High Definition Audio, MIC-in and SPK-out |
| Montering | VESA / wall mounting (4 mounting holes) |
| Mål og vægt | 1.0 kg (net) / 1.5 kg (gross) |
| OS SUPPORT | Windows 10 / 11, Linux, WES 7/10 |
| SATA | 1 × SATA 3.0 (6 Gb/s) |
| SIM kort | Built-in slot for 3G/4G module |
| Strømforbrug | Typical < 20 W |
| Trådløs | 1 × mini-PCIe for Wi-Fi/Bluetooth or 3G/4G module (one active at a time) |
| TDP | 15W |
| Material | Black anodized aluminum alloy |
| RAM | 1 × DDR5 SO-DIMM slot, supports max 64 GB DDR5 |
| GPU | Intel® Iris® Xe Graphics |
| Dimensioner | 193.9 × 127 × 57.2 mm |
| Certification | CE, FCC, RoHS |
| Antal Video Udgange | 2 |
| Antal LAN Porte | 2 |
| Antal USB | 8 |
| Antal Serial | 2 |

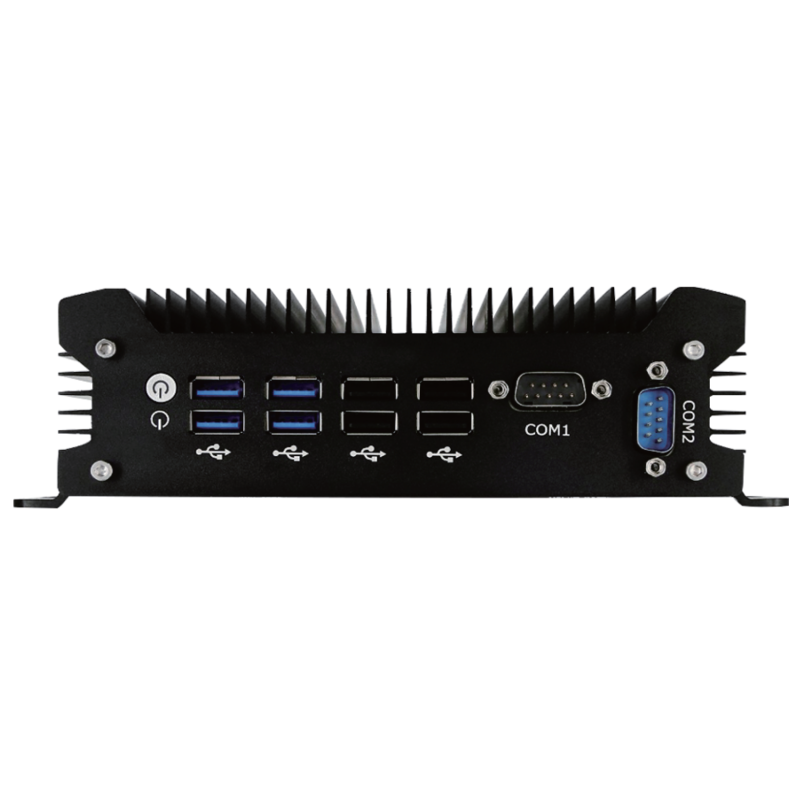

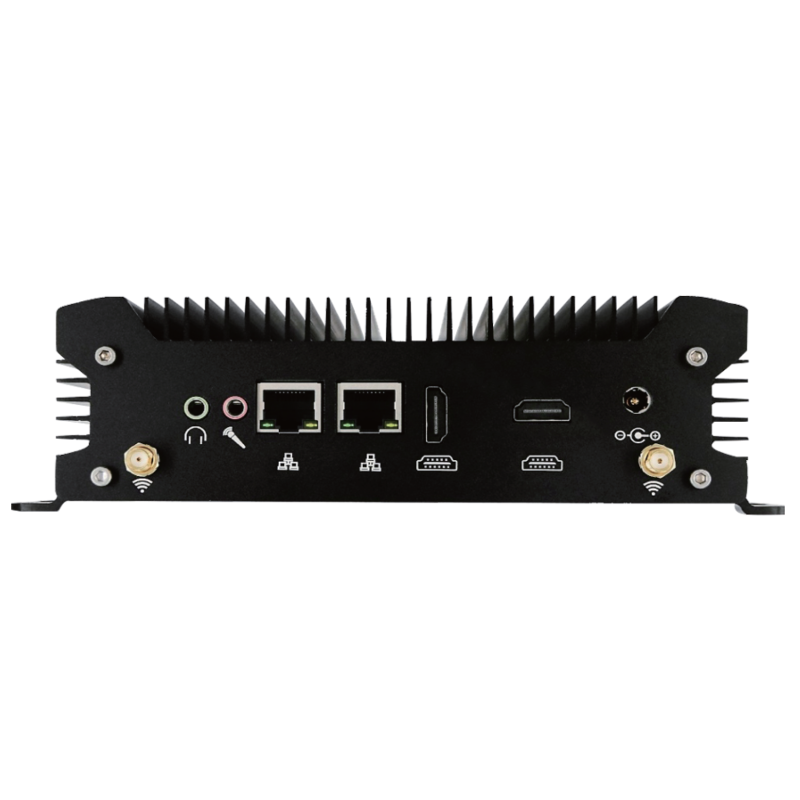

Compact and silent fanless Mini PC powered by the 12th Gen Intel® Core™ i7-1255U Alder Lake processor.
Designed for industrial and commercial environments that demand high performance, low power consumption, and reliable 24/7 operation.
The G12 series combines DDR5 memory, Intel® Iris® Xe graphics, and a full aluminum fanless chassis for outstanding efficiency and durability.
Industrial automation and SCADA systems
Digital signage and surveillance
Network router, firewall, or IoT gateway
Kiosk, POS, and embedded control systems
