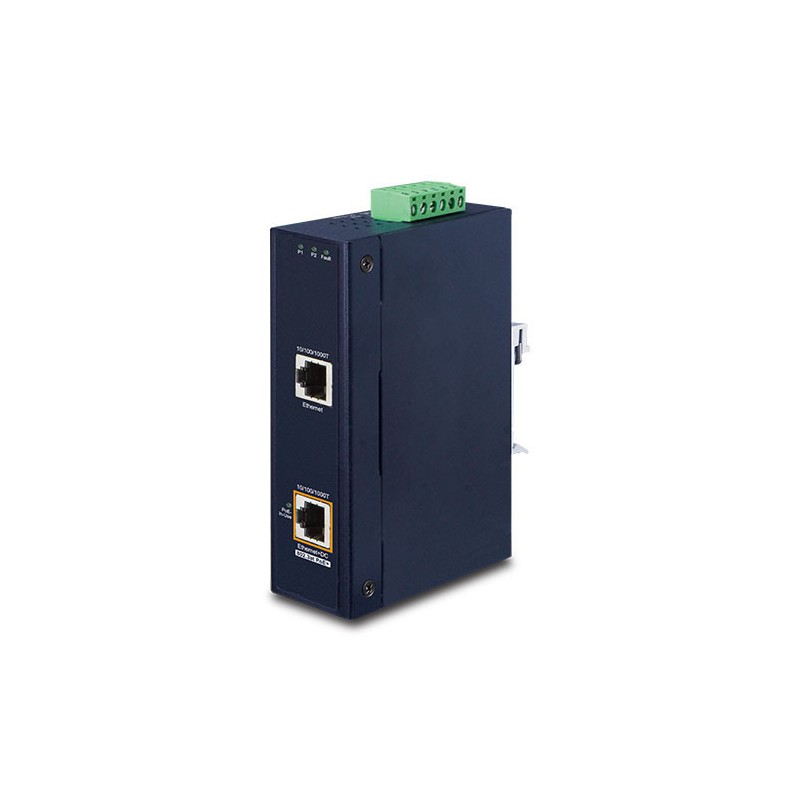

PoE+ Injector Powered by External 12 - 48V Supply

PoE+ Gigabit Injector, 30 Watt. PoE out 56VDC, Supply voltage 12 - 48VDC, -40 - +75°C

Name: PoE+ Gigabit Injector, 30 Watt. PoE out 56VDC, Supply voltage 12 - 48VDC, -40 - +75°C
Brand: Binär Teknik AB
SKU: ETH-POE56-DC12-48
Price: 1492.8 SEK
Availability: InStock

POE power supply via Ethernet cable, up to 30 watt
LAN without PoE in, gives LAN with PoE out
Poe +, 56VDC / 30W
10/100/1000Mbit network.
Power supplies from 12 -48VDC / 32W Max

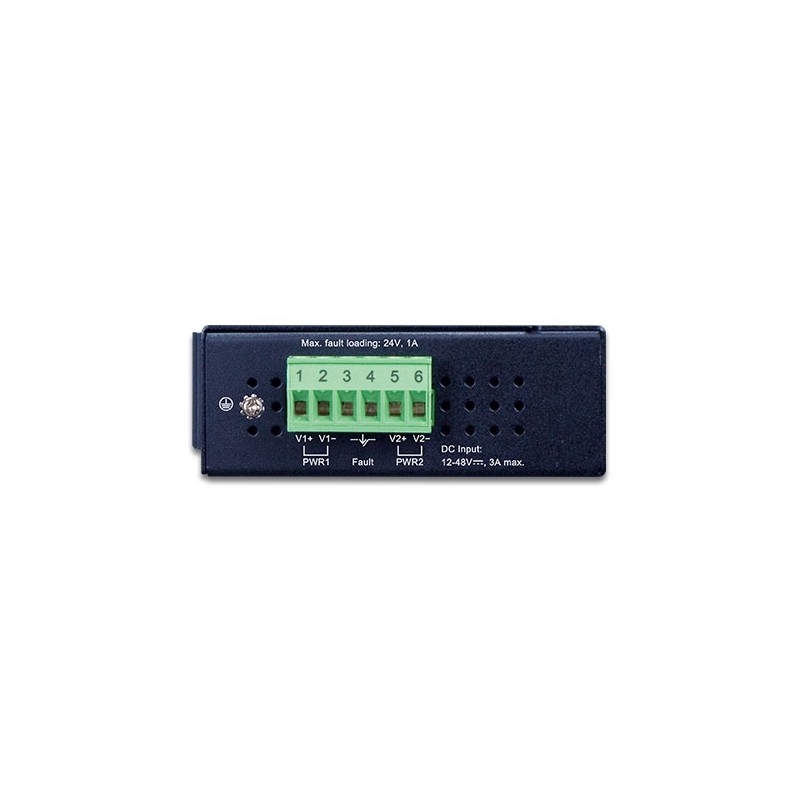

Redundant Power Input via Terminal Block
Power supply not included
Dim: 135 x 87 x 32 mm
Operating temperature: -40 ~ +75°C

1,492.80 SEK

Excl. VAT

Quantity

Physically in stock

Product number ETH-POE56-DC12-48

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Specifications

Operating Temp.	-40 ~ +75°C
Montering	DIN
PoE	IEEE 802.3at Power over Ethernet Plus / mid-span PSE
Strømforbrug	32W max
Strømtilslutning	12-48VDC
Weight	489g
Dimensioner	32 x 87 x 135 mm

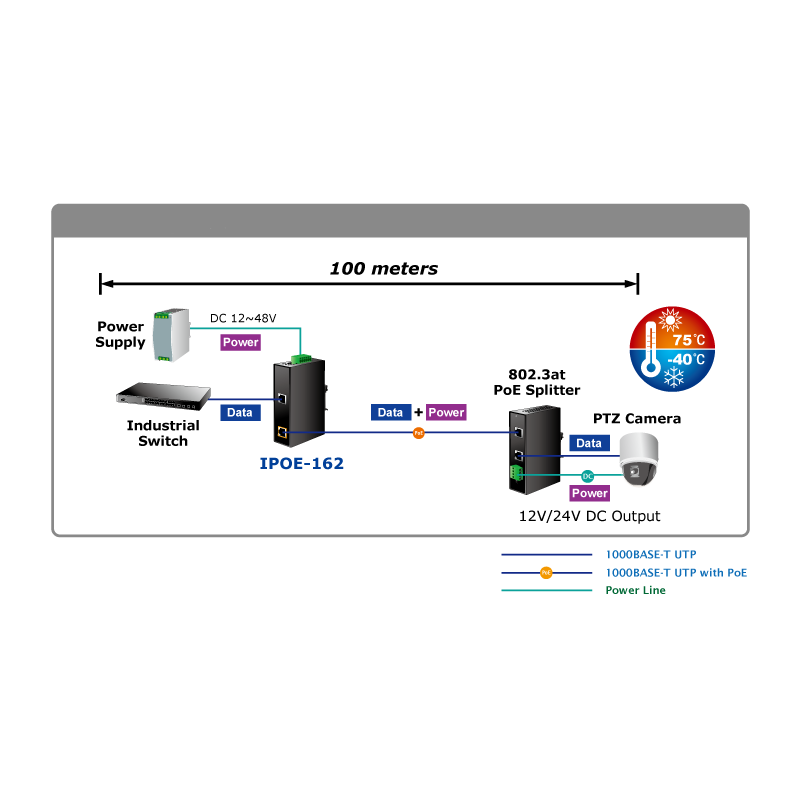

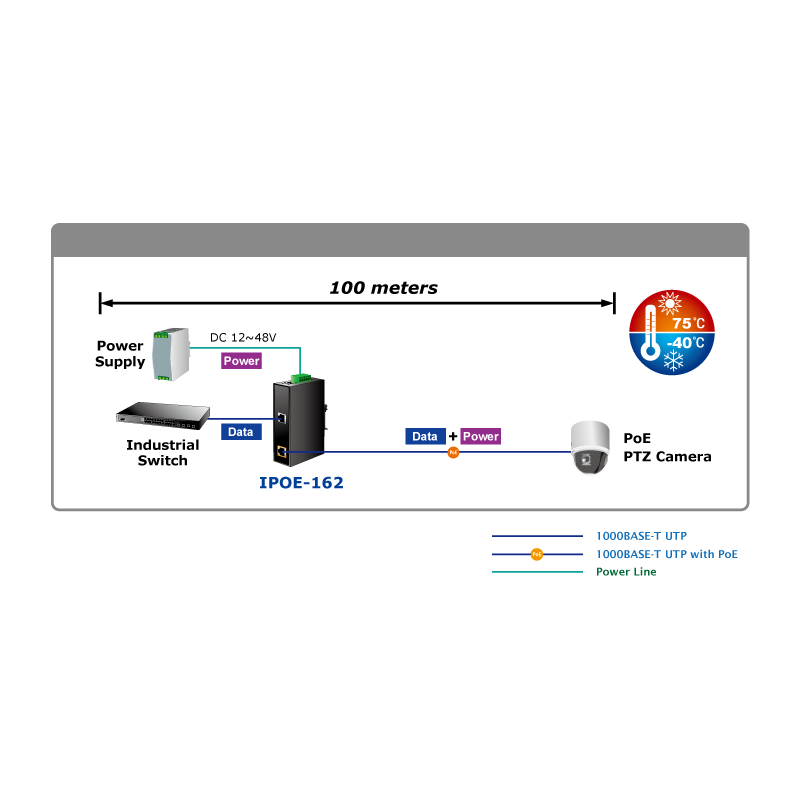

Injector ETH-POE56-DC12-48 can supply 30-watt 56V DC via CAT.5 / 5e / 6 Ethernet cables that allow data and power to transmit simultaneously through the cable between Injector and PoE PD (power supplied) or Poe splitter. The maximum distance between the injector and the splitter is 100 meters. With Industrial IEEE 802.3at Power Over Ethernet Plus devices installed, the system administrator only needs a single RJ45 Ethernet cable to drive both power and data to each device. It would make the network implementation easier and more reliable.

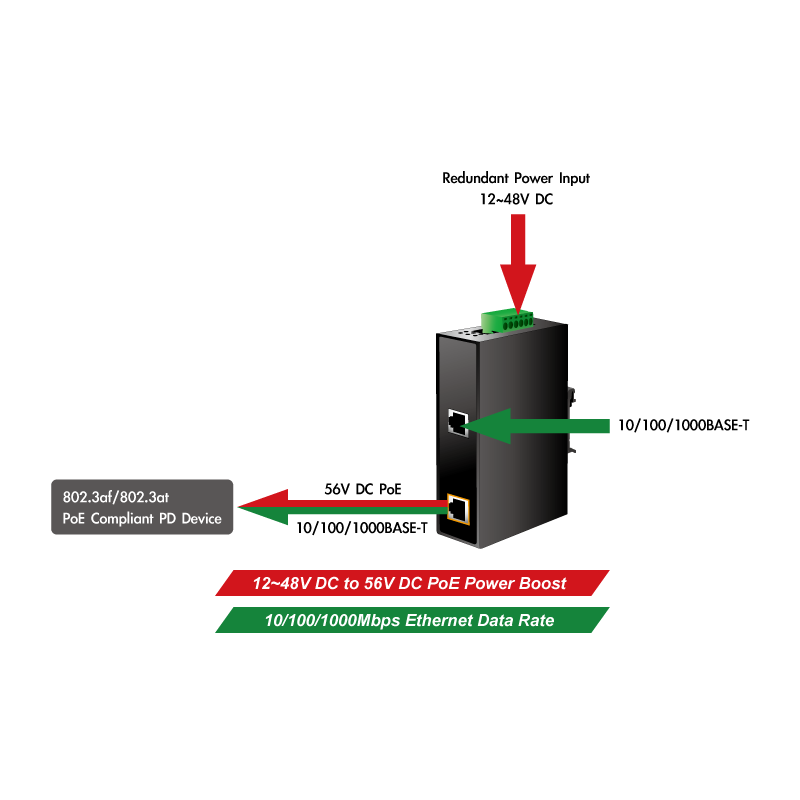

Practical and reliable power supply. To facilitate 802.3at POE usage with commonly used 12 ~ 48V DC power input for transport and applications on industrial level ETH-POE56-DC12-48 Power Boost technology to solve the power source problem, but does not require special power supplies. Its extensive voltage design is suitable for usefulness throughout the world with high availability applications requiring double or backup power inputs.

Andre produkter i samme kategori:

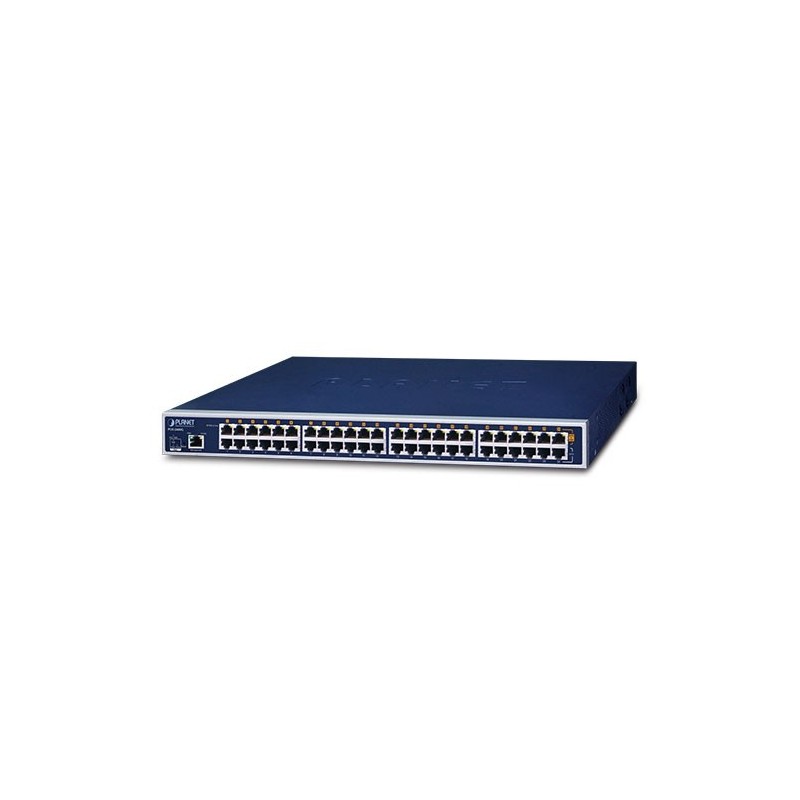

24 port Gigabit PoE Injector, 15Watt per port, PoE+

Switches without PoE can with this Injector "upgraded" to PoE switch
24 ports PoE full power supply

Per port DC 52V 30.8/15.4 watts
LAN without PoE in, LAN with PoE out
10 / 100 / 1000Mbit network

Max PoE 440 Watts

6,240.00 SEK

Item Number: ETH-POE24G

Physically in stock

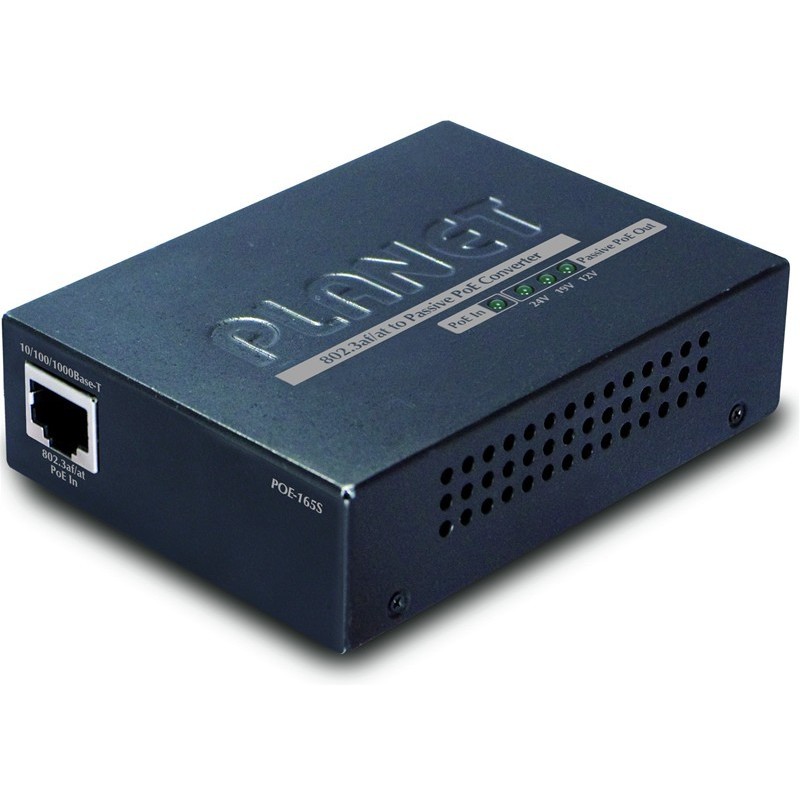

PoE injector which provides 12V, 19V or 24V DC passive PoE for equipment - non-standard

Passive PoE Injector with 12 / 19 / 24 VDC 0.7A output
From Active to Passive PoE converter
PoE input port: IEEE 802.3af/at RJ-45 STP / PD. Supplied from an active PoE switch
Passive PoE output port: non-802.3af/at RJ-45 STP / PSE. For equipment that is NOT for active PoE.

996.80 SEK

Item Number: ETH-POE50PAS

Physically in stock

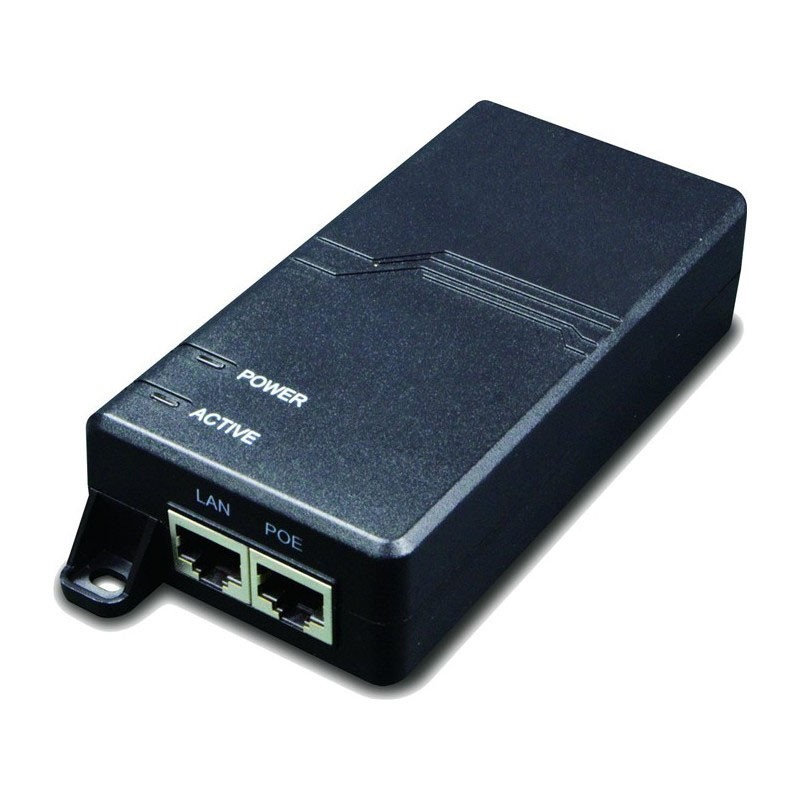

PoE Gigabit Injector, 30 Watt PoE+, output voltage between 50-54VDC. 100 - 240VAC

PoE power supply via Ethernet cable, up to 30 watts

LAN without PoE input, provides LAN with PoE

For 10/100/1000Mbit network.

Power supply from 100 - 240VAC / 0.6A

691.20 SEK

Item Number: ETH-POE56+

Physically in stock

2 x PoE+ injector 2 x PoE + PSE and 2 x LAN. Gigabit. Mid-Span injector 802.3at. 2 x 36watt. 12 - 56VDC input

2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting

1,904.00 SEK

Item Number: ETH-POE2+12-56

4 Ports PoE Switch / PoE Injector 60 Watt per port. PoE 48 or 56VDC. Gigabit. 1 XRJ45 Uplink, 4 x RJ45 PoE port.

4 x RJ45 port with PoE ++ (Ultra PoE)
1 x RJ 45 Uplink port (not PoE).
60W for every PoE-Port
Power Budget is 120 watts
IEEE 802.3at / by PoE.
Dip on / off PoE
Power supply: 100 - 240VAC
Operating temperature: 0 - +40°C
Size: 119 x 88 x 27 mm
Weight: 1.3 kg

2,931.20 SEK

Item Number: ETH-POE-DIP-4X1G

4 ports PoE injector++, 95 Watt, 4 x into LAN, 4 x LAN out with PoE++, PoE 48-54VDC, Gigabit DIN, 48 - 54VDC, -40 - +75°C

Connect switches without PoE for PoE PSE to Equipment
IEEE 802.3bt back compatible to IEEE 802.3at
Supports 10/100 / 1000Mbit speeds
4 x LAN input from the switch without PoE
4 x LAN with up to 95 Watt PoE
Max. PoE power total is 240Watt (PoE power budget)
Auto-detect devices with PoE input for not destroying not PoE
Supply voltage: 48 - 54VDC max. 244 Watt
Setting with DIP switches
DIN bracket for wall mounting and
Operating temperature: -40 - +75°C
Dimensions: 135 x 88 x 50 mm
Weight: 537g

3,560.00 SEK

Item Number: ETH-POE4GH+

Physically in stock

48V Passive PoE power injector with RJ45, 0.5 amps to power outlet

Built 100-240V AC power supply
POC - Power Over Cable power
Meets NOT PoE specifications.
Constant voltage out.
2 x RJ45 ports - data input and data + voltage output
output voltage: DC 48V 0.5A
DC output: + (4.5) - (7.8)
Data: 1,2,3,6
Dimensions: 82 x 44 x 55 mm ( LxWxH)
Weight: 104g

464.00 SEK

Item Number: ETH-POE-POC48

Physically in stock

IP67 IK10 Poe Injector, 30 Watt PoE+ PoE 56VDC. Gigabit, End Span, Supply Voltage 24 - 56VDC, Waterproof

Waterproof Outdoor PoE+ Injector 30Watt
1 x RJ45 Data
1 x RJ45 Data and PoE+
1 x 2-pin DC Phoenix connectors
IK10 Vandal safe
Supply voltage: 24 - 56VDC
POE Standard: IEEE 802.3 at / af
End-Span
Pin: (+ 1.2) (- 3.6)
Operating temperature: -40 - +75°C
wall mounting
Size: 170 x 73 x 44 mm
Weight: 340g

1,868.80 SEK

Item Number: ETH-POE30-WP
