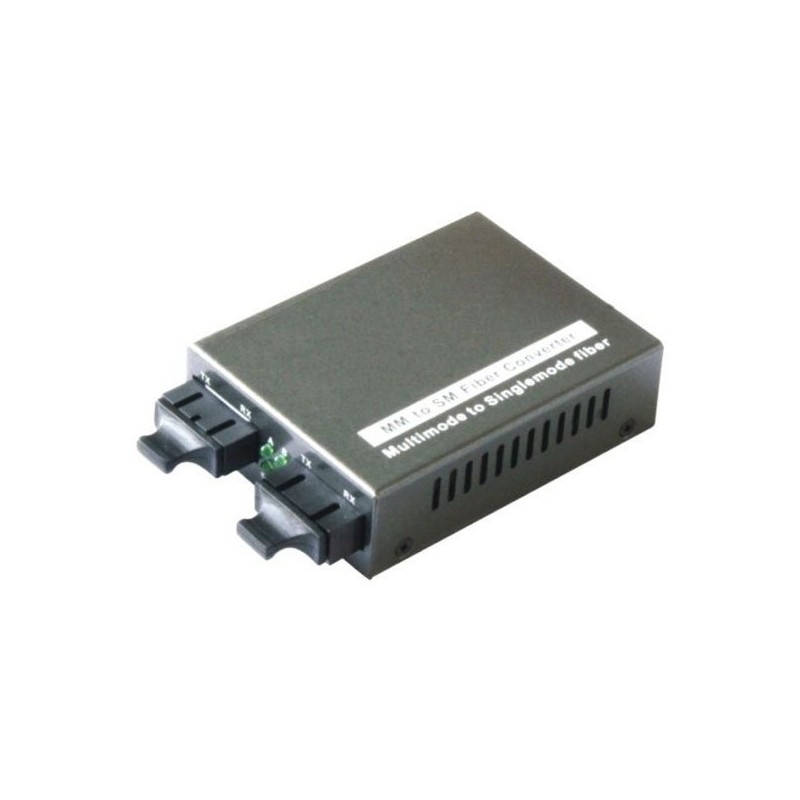

Multimode to Single Mode 100Mbit Fiber converter SC connector. Connector 2 different fiber network

For the interconnection of single mode and multimode fiber networks
1000Base-SX to 1000Base-LX, SM, 850/1310 nm
only to Gigabit fiber networks.

Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm

1 x 10/100/1000Mbit RJ45
1 x 1000Mbit SFP (only for Gigabit SFP modules)
up to 80km with Single Mode fiber
up to 550m with Multi Mode fiber
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
BIDI with LC or with SC (Simplex fiber)
Purchase additional Gigabit SFP modules.
up to 100m with Cat.5e or Cat.6
5% to 95% humidity
5VDC power supply included
-0°C to +70°C

IEEE 802.3 / u / ab 10/100 / 1000BaseT
IEEE 802.3z 1000BaseX
Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI / MDIX in TP Port
Auto Negotiation in TP Port
Flow Control
Link Alarm
Auto & amp; Force Mode Configuration
Dimensions: 71 x 94 x 26 mm for DC5 V, 1.5 A

10 / 100Base-T to 100Base-FX duplex multi mode
Multi mode up to 2km
SC - 50my and 62,5my - 1310nm
Temperatur: -40 - +75°C
5VDC PSU included.

Media Converter 100Mbit Multimode ST duplex - 2km
1 x RJ45 10 / 100Mbit
1 x ST 100Mbit
1310nm
5VDC
Dimensions: 97 x 69 x 26 mm

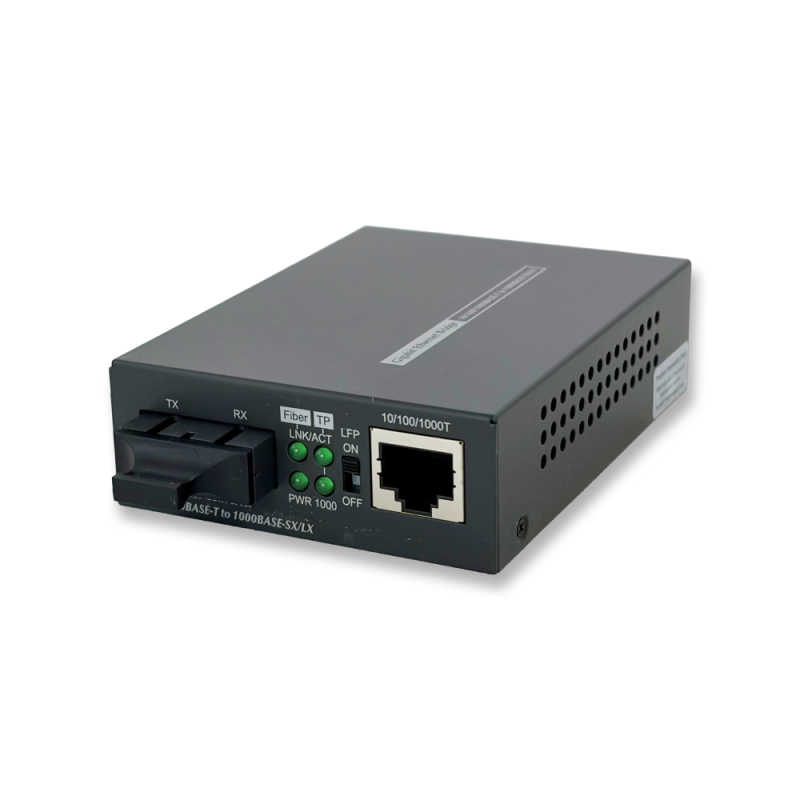

10/100/1000Base-TX to 1000Base-LX
1310 nm, Single Mode
Up to 10 km
Uses singlemode fiber cable (9/125 µm)
Only for 1000Mbit fiber, Single Mode

Media converter for 100/1000Base-X SFP module
Can power equipment with PoE+
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
10/100/1000Base-TX
56VDC PSU included.
Mid-span PoE (PSE) (4.5/7.8)
PoE power is max. 30 Watt
Alarm in case of link failure
