YAGI GSM / LTE antenna in the plastics dome (20 cm cable with N M) - Danbit A / S
YAGI GSM / LTE antenna in the plastics dome (20 cm cable with N M) - Danbit A / S
Previous
Next
YAGI GSM / LTE antenna in the plastics dome (20 cm cable with N M) - Danbit A / S
YAGI GSM / LTE antenna in the plastics dome (20 cm cable with N M) - Danbit A / S

GSM, LTE 11dBi logic YAGI antenna in plastic dome, 20 cm cable with N female, mastebeslag

Directional antenna - Yagi Type
2 bands 800-960 / 1700-2500MHz
angle: Horizontal 65 °, Vertical 55 °
11 DBI Outdoor logperiodisk
20 cm COAX cable with N- Type He
Dim: 446 x 210 x 65 mm
Weight: 900g
Max. Wind speed: 60 m / second
DC Ground - Transient Protection
Material: ABS

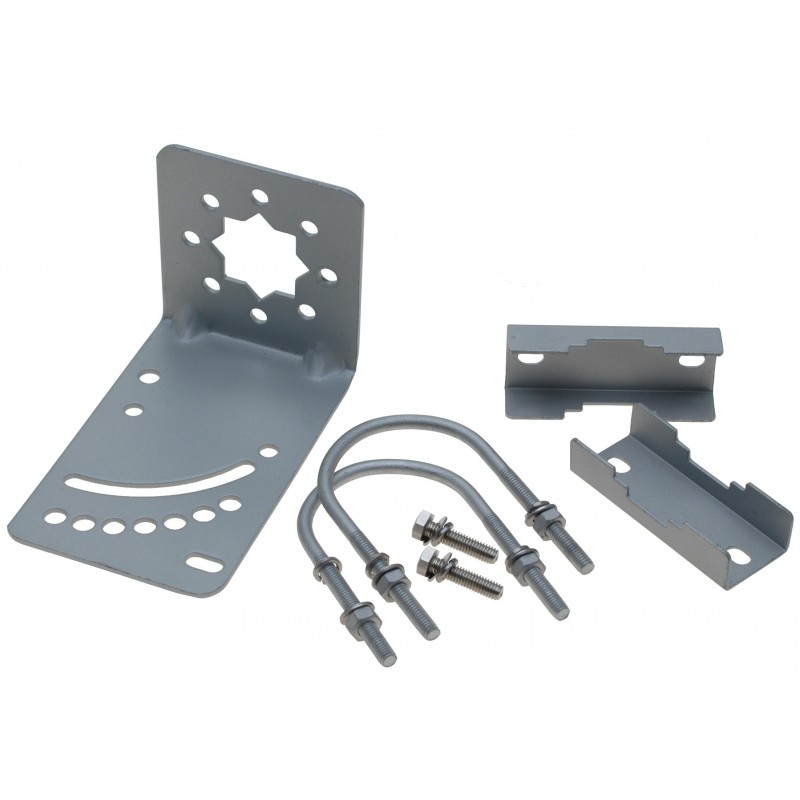

Masters with angle adjustment included

1,440.00 SEK
Excl. VAT
Quantity
LÆG I KURV
Product number GSM-ANT11LOG
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Frekvens Frekvensområde: 806 – 960MHz / 1700- 2500MHz
Gain Gain: 9 dBi ved 806 - 960 MHz 11 dBi ved 1710 - 2500 MHz
Montering Mast, beslag medfølger
Stik N type på 20 cm kabel
