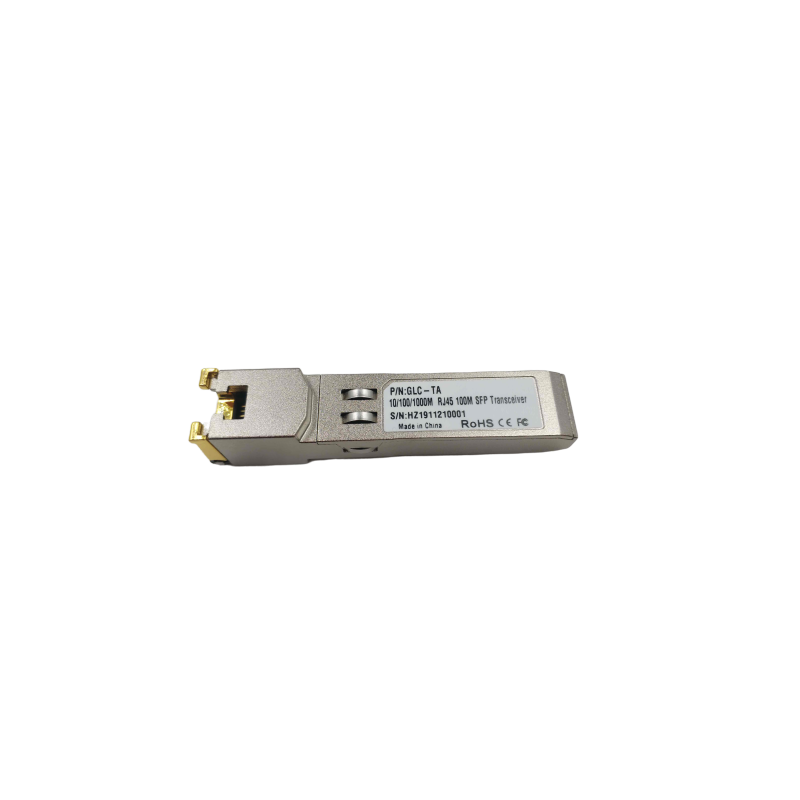

100Mbit SFP module for RJ45, 100BASE-T, 10/100BASE-T copper. Up to 100 meters
Hot plug SFP
TX Disable and RX Los/without Los function
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10/100Mbps compliant in host systems with SGMII interface
0°C to +70°C
417.60 SEK
Excl. VAT
Quantity
This product is no longer available for sale.
close
Specifications
| Operating Temp. | 0°C to +70°C |
|---|---|
| Data | 1.25Gb/s bi-directional |
| Forsyning | Low power dissipation (1.05 W typical) |
| Features | TX Disable and RX Los/without Los function |
| I/O | Hot-pluggable SFP footprint |
| Netværk | 10/100/1000Mbps compliant in host systems with SGMII interface |
CNV-SFP-100M-RJ45 (SFP) transceivers are cost-effective modules compatible with Gigabit Ethernet and 100BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which support data rate of 100Mbps up to 100 meters range over unshielded twisted pair Category 5 cable. The module supports 100 Mbps full duplex data connections with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with a symbol rate of 250 Mbps on each pair. The module provides standard serial ID information compatible with the SFP MSA. The physical IC can also be obtained via 2wire serial bus at address ACh.
