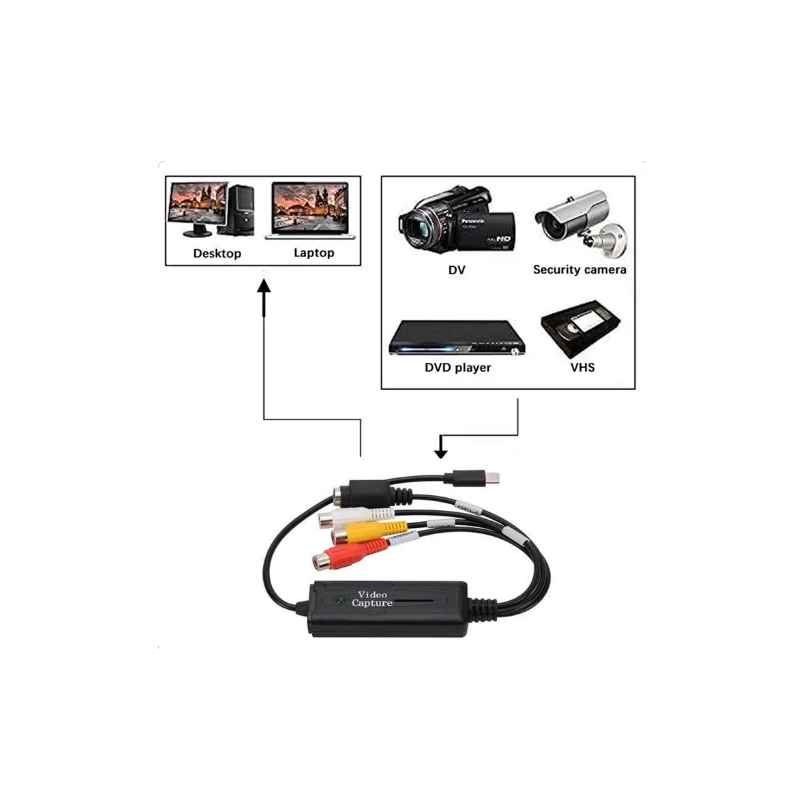

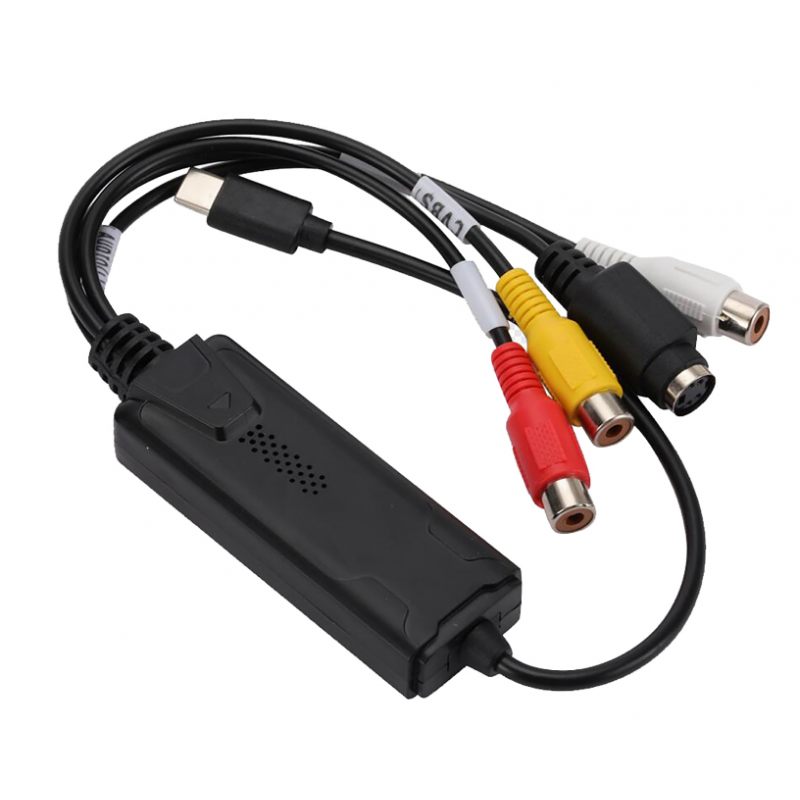

RCA / S-video to USB-C Capture Card

Suitable for the service technician
For Servers, embedded PCs that are not connected to KVM
A laptop will now be screen, keyboard and mouse.
Box has input for VGA
Box has USB output for emulation of keyboard and mouse.

Videograbber HDMI til USB 2.0
Opløsning som videokilde
H.264 komprimeret video
Video og snapshot

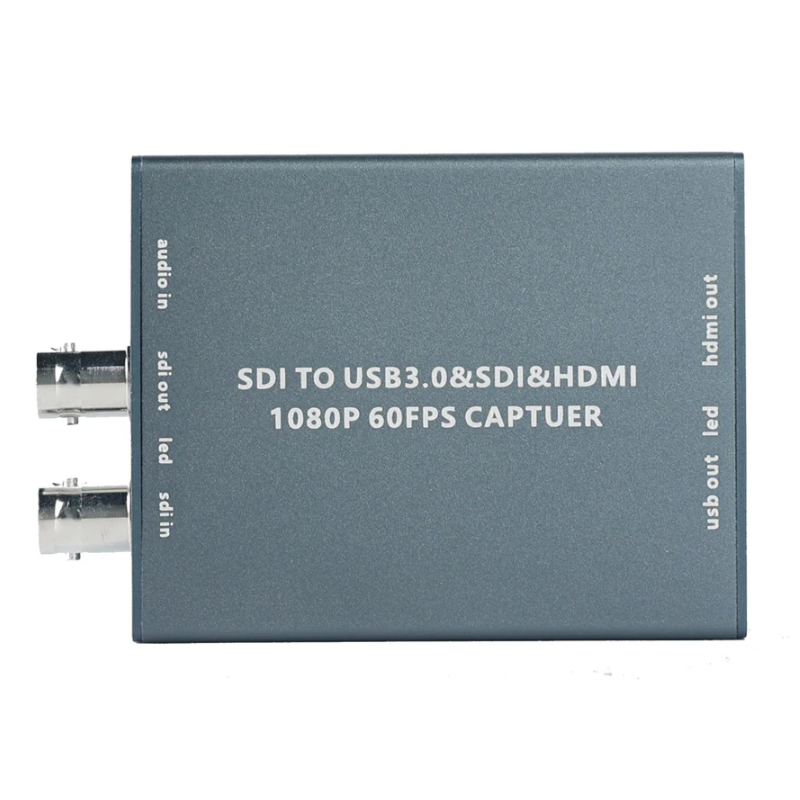

Input SDI signal via BNC female
Output USB3.0/BNC female/HDMI
Max video reolution 1920x1080 (1080p)
60FPS Frames per second max
Audio port 3.5mm
Working Temp. -20℃-65℃
OBS Player support
Windows/Linux /Android/MAC

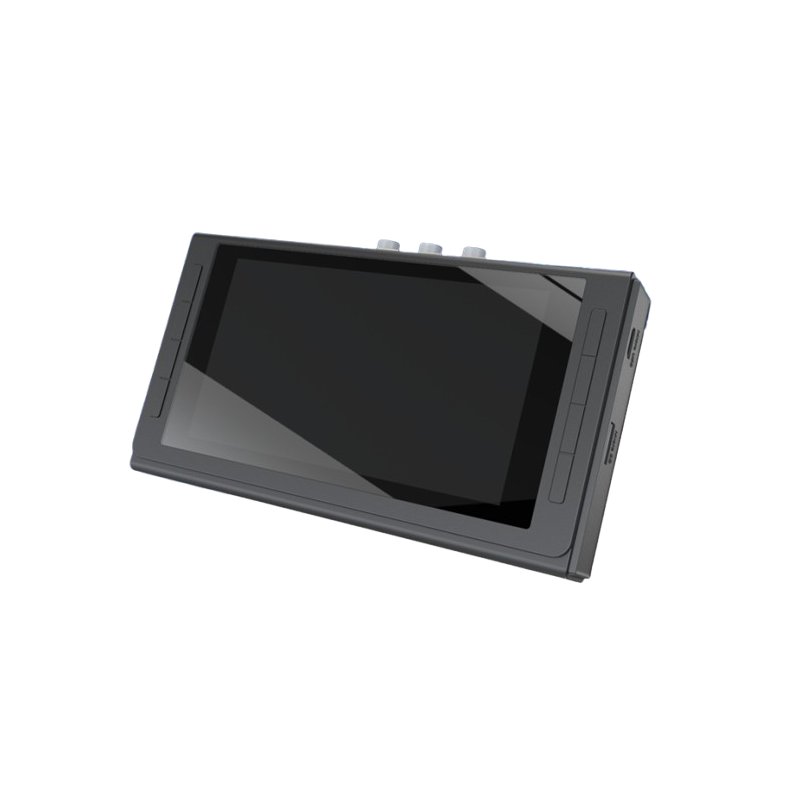

Portable 4K Video Recorder with 4K60 Pass‑Through & H.265 Encoding

Supports HDMI input up to 4K@60Hz

HDMI output with 4K@60Hz pass-through and on‑device playback

Records in 4K30 @ H.265 or 1080p60 / 720p60 in standalone mode

Built‑in 5″ preview/playback panel with OSD controls

Microphone input for audio overlay; built‑in speaker

Pause recording, capture screenshots, schedule recording

Supports microSD up to 512 GB and USB flash / HDD storage up to 2 TB

Built-in battery enabling ~2.5 hours of recording

USB Type‑C port to output live stream to PC (OBS support on Windows)

IR remote control for convenient operation

Power input via DC IN (5V/2A adapter included)

Supports hardware encoding of 480P MPEG4 (H.264) and includes RCA connectors (yellow/red/white) for AV input, as well as S-Video input at PAL 720×576i50.

Features an HDMI output at 1280×720p60, with output signals including HDMI and speaker.

For storage, it supports one micro SD card up to 512GB and one USB Type A flash drive, also up to 512GB.

Built-in 5.0” display with a resolution of 854×480 allows for on-screen display, preview, and playback.

Audio is provided by a built-in 1W speaker.

The hardware recorder can capture up to 480P MPEG4 files and supports 576i PAL.

Recording resolutions include NTSC 720×480 at 60p, PAL 720×576 at 50p, and 640×480 at 60p, all saved in MP4 (H.264) format with a recording bitrate of 4Mbps.

Audio recordings can be saved in MP3 at 320kbps or WAV at 1536kbps.

The device supports FAT32, NTFS, exFAT, and FAT file systems.

It is powered by an internal 1800mAh battery and a USB-C 5V/2A power supply.
