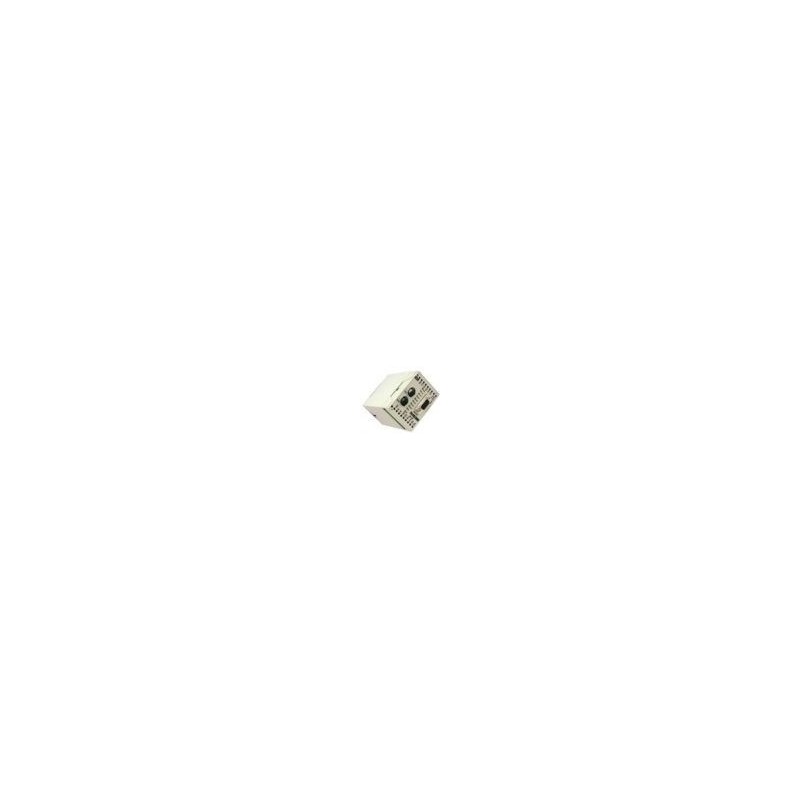

RS232 to Multi Mode fiber converter 50/125 or 62.5/125my, ST connector. DB9 male, up to 1.7km
max baud rate 115kb / s for 56kb / s for signal RI
Up to 1.7km at 62.5um fiber cable.
Fiber Optic line multimode, 820nm
Transmitting: RxD , TxD, DTR, DSR, RTS, CTS, DCD, RI or 5x RxD, TxD
RS232 signal including DCE / DTE
Time multiplex, full duplex
RS232 DB9 male
Plug fiber ST
overvoltage (soft) protection - supply 600W / 1ms
polarity protected with diodes on DC input
optical indication (LED) red - PWR
Yellow - INPUT signal
Green - OUTPUT signal
Supply voltage 10-30VDC or 9 - 24VAC
power consumption max. 2W
Dimensions: 76 x 55 x 115 mm
1,848.00 SEK
Excl. VAT
Quantity
Physically in stock
close
Speed: Up to 115.2 Kbit/s
Distance: Up to 1.7 km
Data transfer: Tx, Rx (Software handshake)
Fiber type: Multimode 62.5/125 um
Wavelength: 820 nm
Supply: 10 - 30 VDC or 9 - 24 VAC, 1.1 W. Power supplied through screw terminals
Connector: RS232: DB9 male or screw terminals, light guide: ST female
