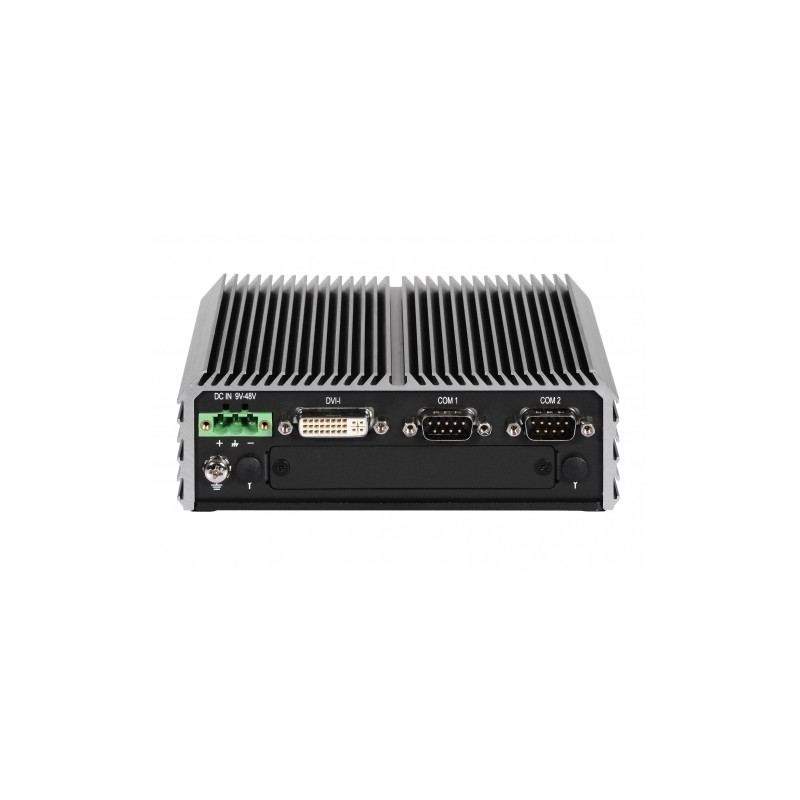

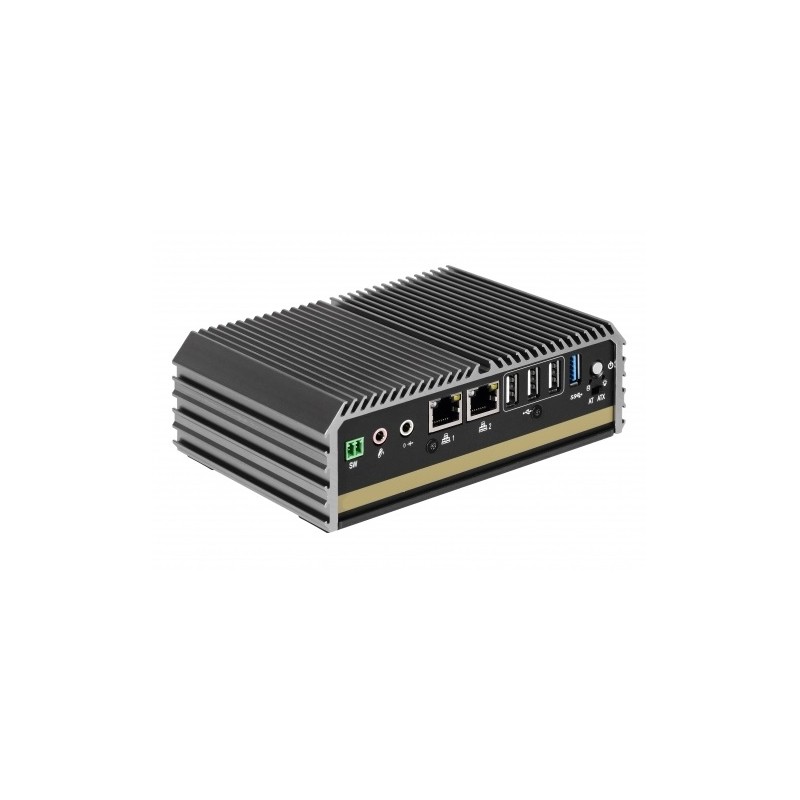

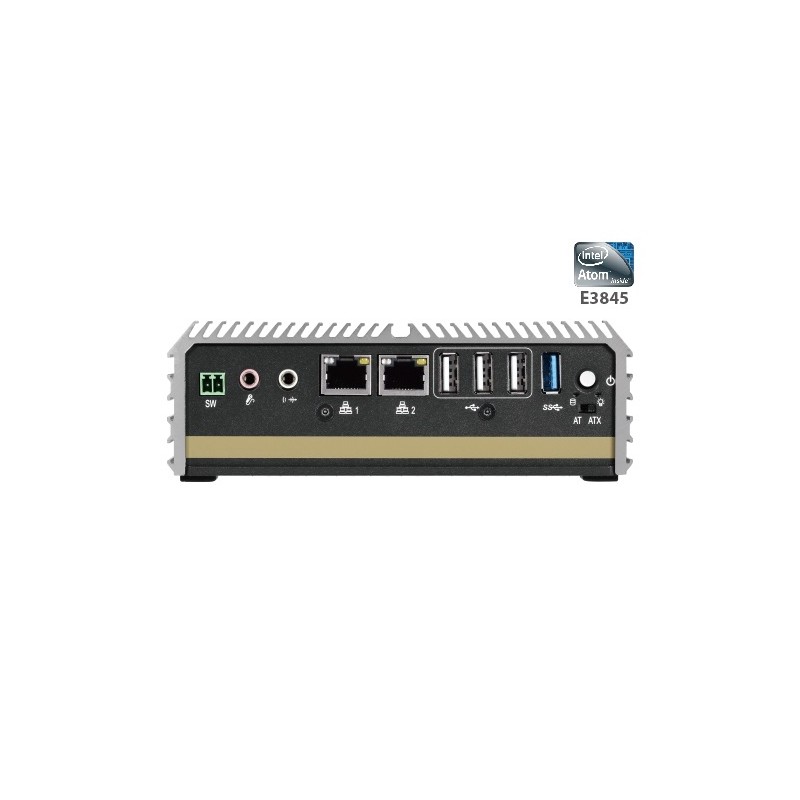

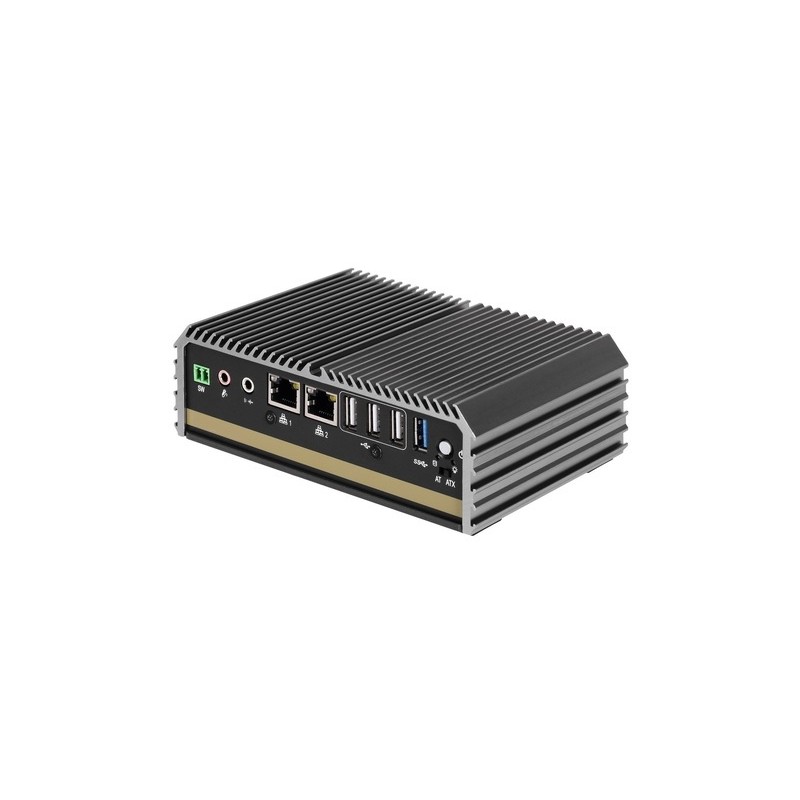

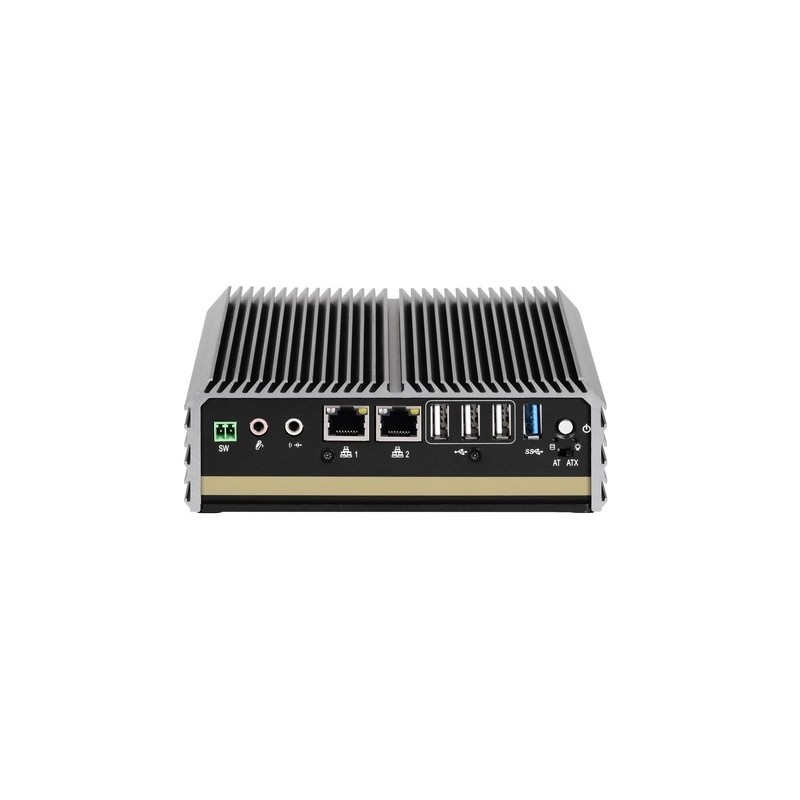

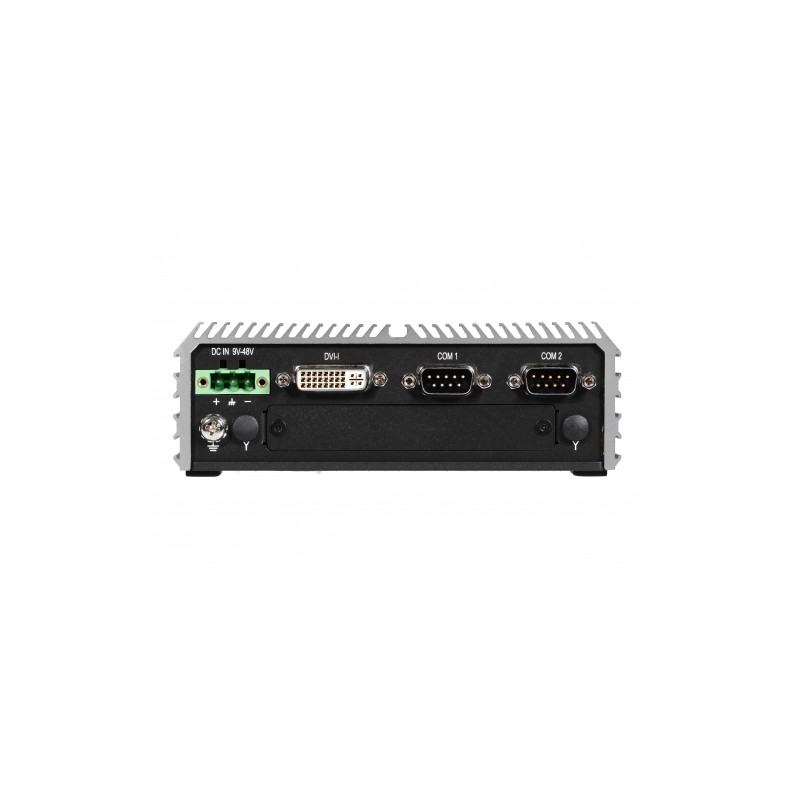

Compact fanless PC with Quad Core Atom CPU

Mini Embedded PC with Atom™ E3845 Quad Core 1.91GHz CPU, 9~48VDC

Name: Mini Embedded PC with Atom™ E3845 Quad Core 1.91GHz CPU, 9~48VDC
Brand: Binär Teknik AB
SKU: EPC-E3845
Availability: Discontinued

Onboard Intel® Atom™ Processor E3845 Quad Core 1.91GHz

One DDR3L SO-DIMM Support DDR3L 1333MHz Up to 8G

Dual Intel® I210 GbE LAN Ports, Support WoL, Teaming, Jumbo Frame, PXE

Ultra Compact Size (150x105x56.02mm)

Dual Display, Output from One DVI-I Port

-25˚C~70˚C Operating Temperature

9~48VDC Input, Support AT/ATX Power Mode

Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)

Windows 10 support

Call +45 56 66 20 20 for price

Quantity

This product is no longer available for sale.

Product number EPC-E3845

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Specifications

CPU	Intel® Atom™ E3845 Up to 1.91 GHz
USB	1x USB 3.0, 3xUSB 2.0
Operating Temp.	Ambient with Air Flow: -25°C to 70°C
Forsyning	9~48VDC via 3-pin Terminal Block
Hukommelse	DDR3L 1333MHz 8GB MAX
Montering	VESA/Wall Mounting (Optional DIN-Rail/Side Mounting)
Msata	1x (SATA 2.0, Shared by Mini-PCIe Socket)
Netværk	2x Intel® GbE1: Intel I210 GbE LAN Port.
OS SUPPORT	• Windows® 10 • Windows® 8.1 • Windows® 7
Porte	2x (DB9, RS-232/RS-422/RS-485 with Auto Flow Control)
SIM kort	1x SIM Socket
Dimensioner	150 x 105 x 52.3 mm

EPC-E3845 is an ultra-compact size fanless embedded computer powered by Intel® Atom™. It integrated HD graphics processor supporting dual display. This can bring economic advantages on budget and also fulfill the needs for industrial computing tasks. EPC-E3845 manages to pack a diverse array of I/O into its small form factor, with one DVI-I port, two RS-232/422/485 COM ports, dual Gbe LAN ports, four USB ports and one set of Mic-in and Line-out.
