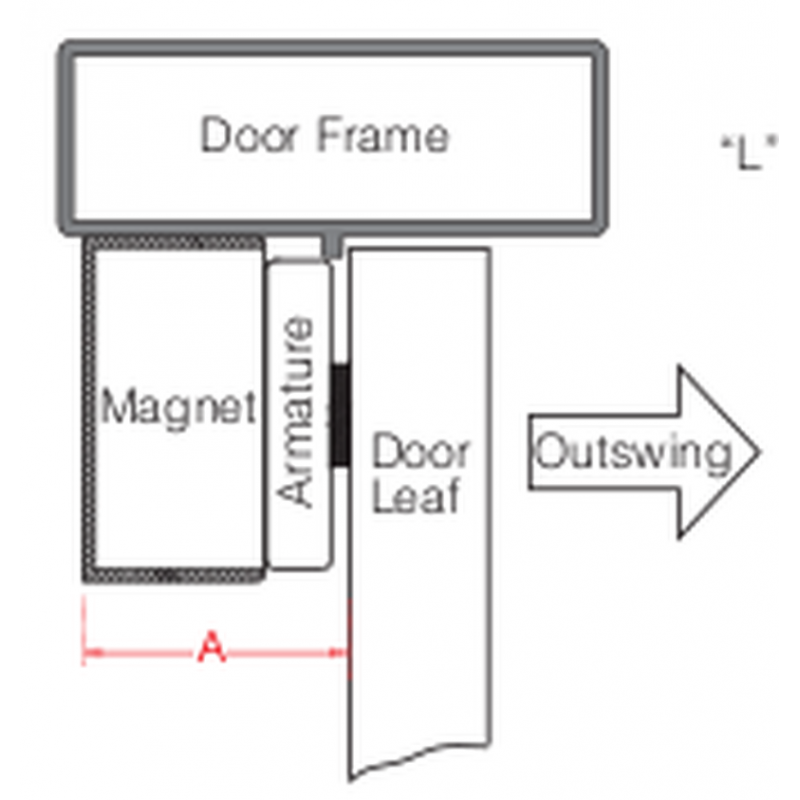

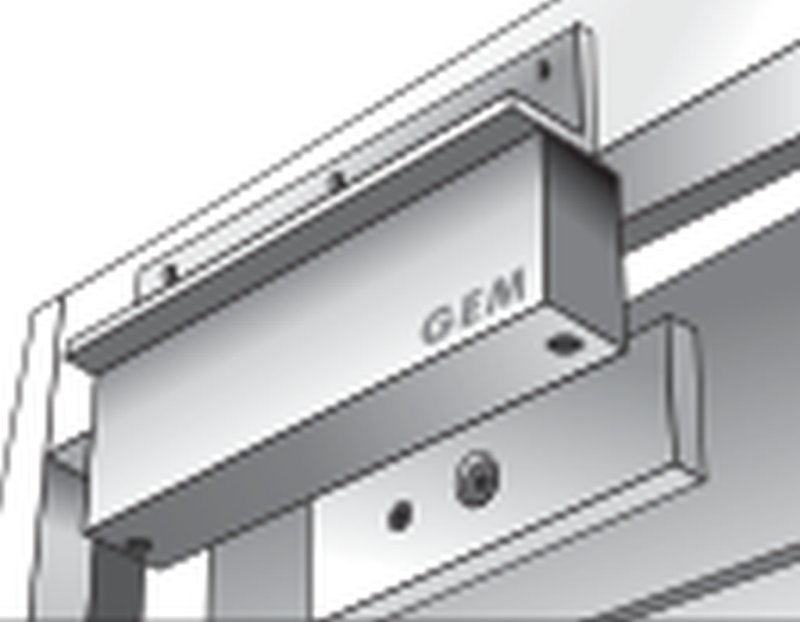

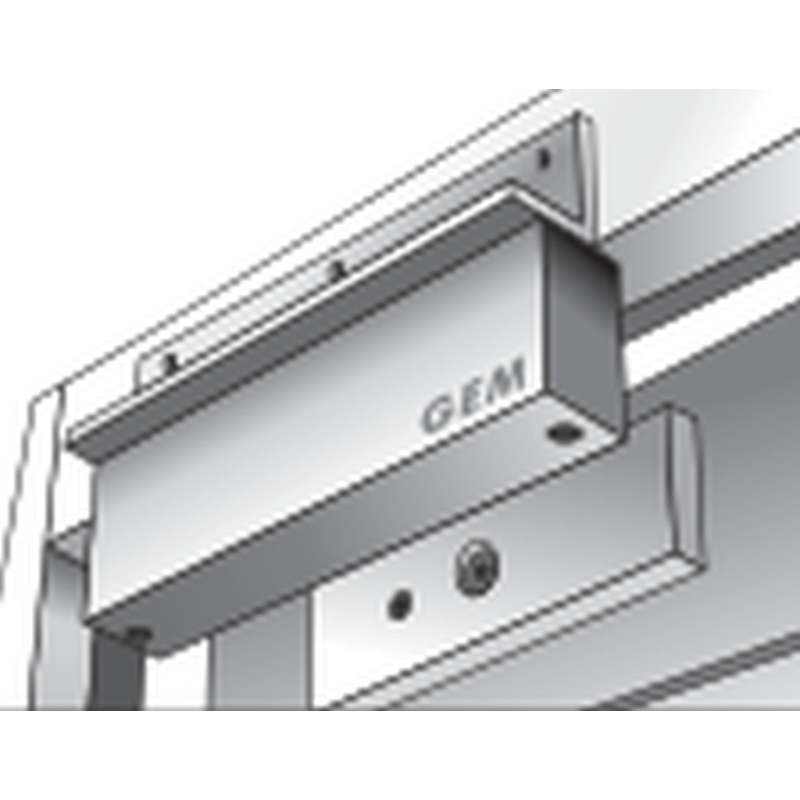

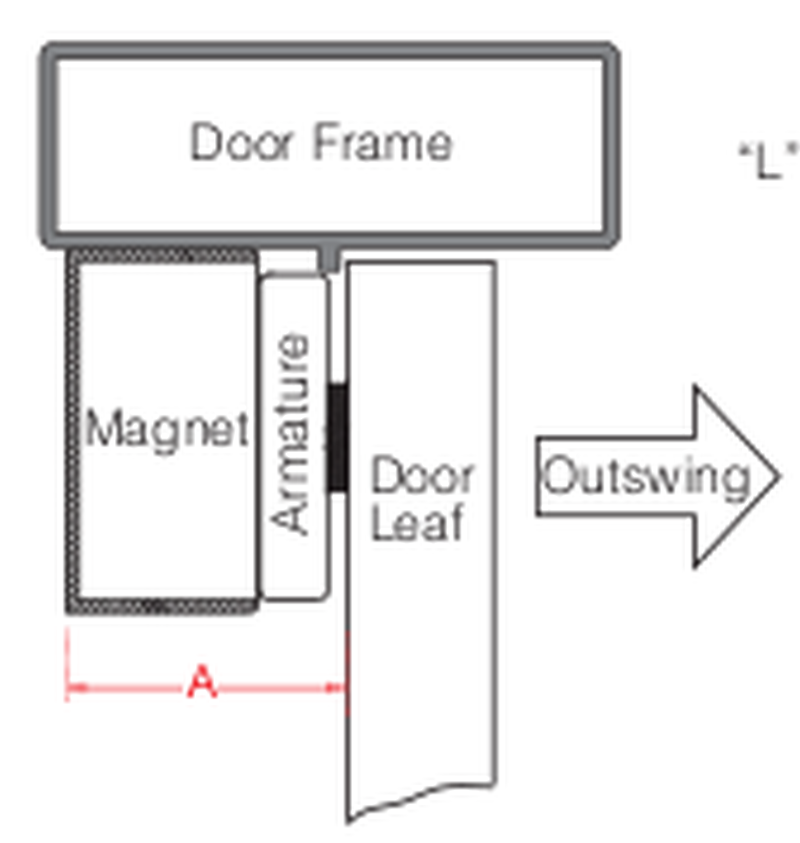

Bracket for the door magnet. Angle bracket for DOOR-MAGNET-MINI. To outward door

Door switch for access controls - EXIT button.
make contact by pressing
Contact: NO / COM
Max. 36VDC 3Amp
cast aluminum, steel button
Operating temperature -20 - + 50 ° C
Dimensions: 83 x 32 x 25 mm | Weight: 135g

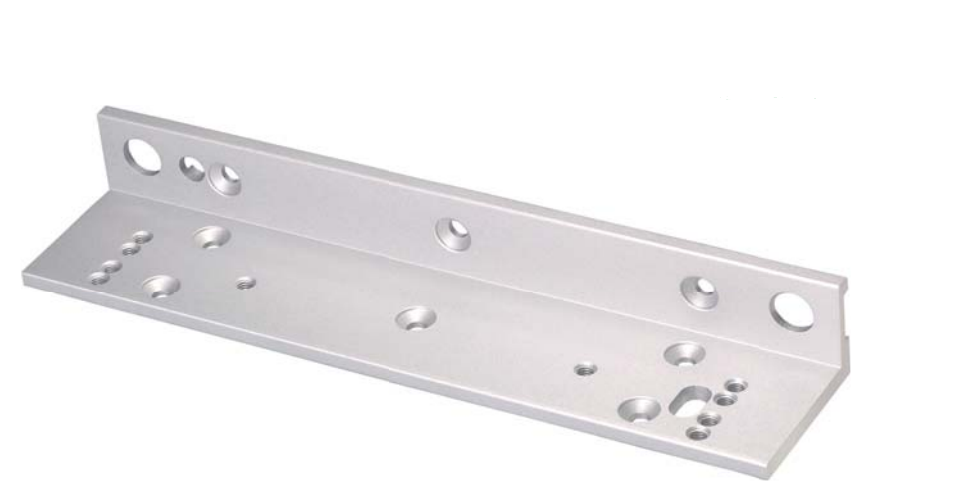

Angled bracket for the door-magnet-yx35 types.
for attaching the holdemagnet.
1 part of extruded aluminum
Screws included
Dim: 265 x 73 x 45 mm
anodized

Electronic lock
DC 12V up, 0.8A
Metal
Cable length 36cm
Weight: 155g

The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C
Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg

door magnet with clamping force up to 545kg
Rusrfri steel cabinet full sealed with epoxy and is vandal proof
Equipped with thread for flexible tube to protect the cable
Supply voltage for team: 12VDC or 24VDC, 6Watt
Cable change-over between 12 and 24 VDC
Only holding force when energized
With Bond Sensor (Lock indicator)
Operating temperature: -10 to + 55°C
Magnetic: 220 x 62 x 41 mm
Door-plate: 185 x 61 x 16 mm
Anti-magnetic feature
Weight: ca. 5 kg

The door magnet with holding force up to 363 kg
Rust free steel cabinet full sealed with epoxy and is vandal safe
Voltage for hold: 12VDC or 24VDC, 6 Watt
Switch between 12 and 24VDC
No holding force at no voltage
Operating temperature: -10 to + 55 ° C
Magnet: 216 x 53 x 32 mm
Amaturple plate: 185 x 45 x 14 mm
anti magnetic function
Weight: Approx. 4.5 kg

Mounting bracket Kit. 3 parts
for inward door

Accessories DOOR-MAGNET-LOCK
bracket for mounting to the inward door (inswing)
Set consists of three parts
Strong aluminum profiles.
Good adjustability
