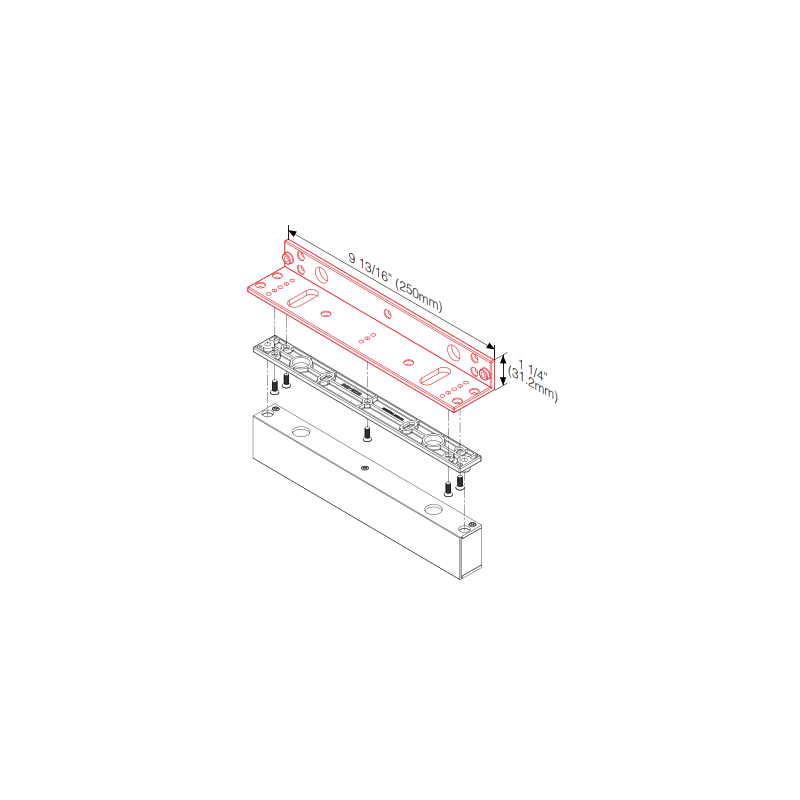

Angle bracket for door magnet DOOR-MAGNET-LOCK6 if it is to be mounted on an outward-facing door

Syge og ældre alarm til WA-BASE+

Wireless infrared outdoor PIR motion sensor
External antenna
Adjustable range sensor 10-35m / 750 sqm
Battery operated 2 x AAA 1.5 volt
Operating temperature -20 to + 55 °
IP55 close to 150 meters line-of-sight
For wall mounting (fittings included)
The system does not work without reciever PIR-WL-R

Modtager/ styreenhed til trådløst PIR system
Håndterer 1-3 sensorer/ detektorer
Forsynes via 12V dc 35mA
Driftstemperatur -20 til +55°
IP65 tæt til udendørs brug
Frekvens 433 MHz - rækkevidde 150m
Til vægmontering
Virker ikke uden PIR sensor PIR-WL35

The door magnet with holding force up to 136 kg
stainless steel housing full sealed with epoxy
Voltage for holding: 12VDC 6 Watt
No holding force at voltageless
Operating temperature: -10 to +55°C
Magnet: 170 x 32 x 24 mm
Amaturple plate: 152 x 32 x 10 mm
Anti magnetic function
Weight: Approx. 2.5 kg

MDB Male and Female
DEX Male and Female

The door magnet with holding force up to 363 kg
Rust free steel cabinet full sealed with epoxy and is vandal safe
Voltage for hold: 12VDC or 24VDC, 6 Watt
Switch between 12 and 24VDC
No holding force at no voltage
Operating temperature: -10 to + 55 ° C
Magnet: 216 x 53 x 32 mm
Amaturple plate: 185 x 45 x 14 mm
anti magnetic function
Weight: Approx. 4.5 kg

Compact motorized lock with separate pawl
Locked without tension
Releases the locking pawl in case of short-term tension
The pal part has a push-out (5-8mm)
Adjustable delay on relocking 2 to 5 seconds
2 lock inputs
Can be mounted in 2 different ways
Control voltage - 12 - 28VDC / VAC, max. 165mA
Dimensions: 60 x 60 x 22mm

door magnet with clamping force up to 545kg
Rusrfri steel cabinet full sealed with epoxy and is vandal proof
Equipped with thread for flexible tube to protect the cable
Supply voltage for team: 12VDC or 24VDC, 6Watt
Cable change-over between 12 and 24 VDC
Only holding force when energized
With Bond Sensor (Lock indicator)
Operating temperature: -10 to + 55°C
Magnetic: 220 x 62 x 41 mm
Door-plate: 185 x 61 x 16 mm
Anti-magnetic feature
Weight: ca. 5 kg
