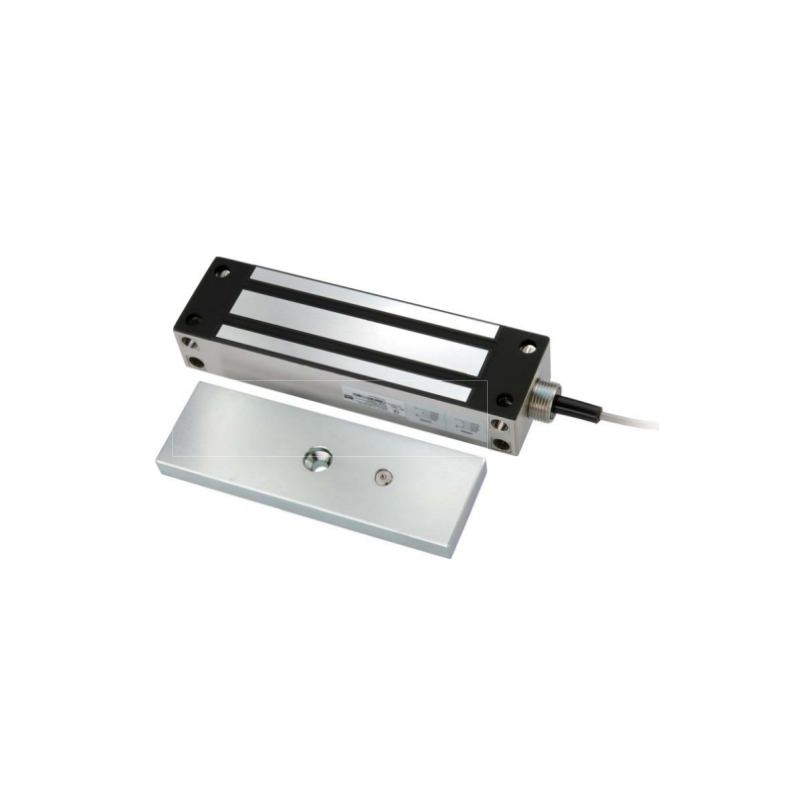

Waterproof Mini Magnetic door Lock, 272 Kg. Holding Force, 12 / 24VDC automatic - High Security.

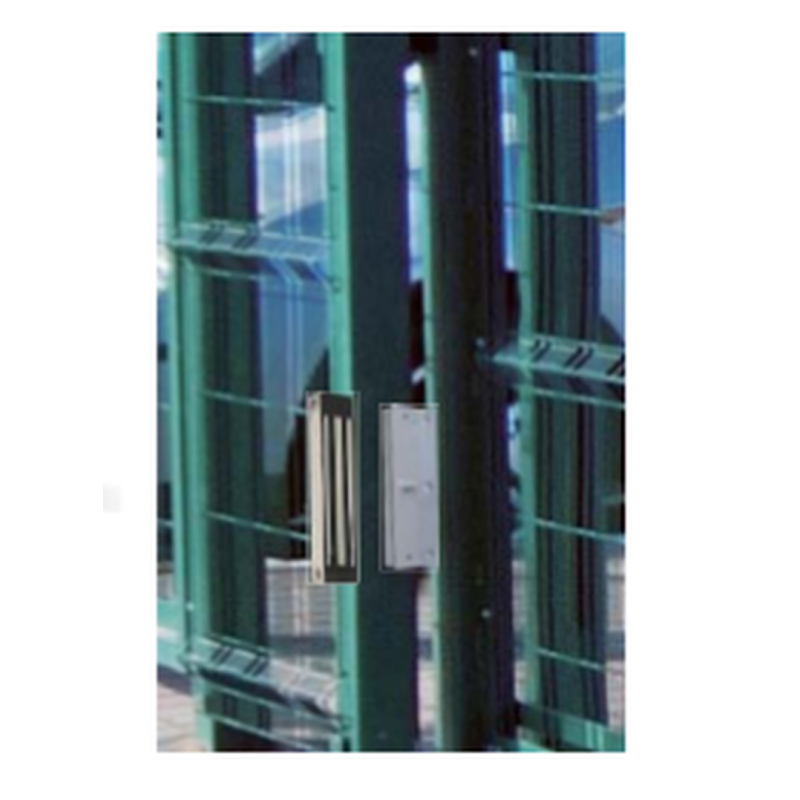

Designed for face mount on in-swing doors or gates
Operating Temperature: -10 - 55ºC
Armature Plate: 185, 45, 14 mm.
Magnet: 203, 43, 40 mm.
Spike and surge protection.
Holding force up to 272 Kg.
Dual voltage 12 or 24 VDC.
Anti-residual magnetism.
High reliability.
Weight: 3.0 Kg.
3,595.20 SEK
Excl. VAT
Quantity
Physically in stock
close
Specifications
| Operating Temp. | -10 - +55°C |
|---|---|
| Forsyning | 12/24VDC med automatisk omskiftning |
| Holder | Op til 272 kg |
| Strømforbrug | minimum 6Watt |
| Weight | ca. 1,5 kg |
| Dimensioner | 203 x 44 x 40 mm. Dør-plade: 185 x 45 x 14 |

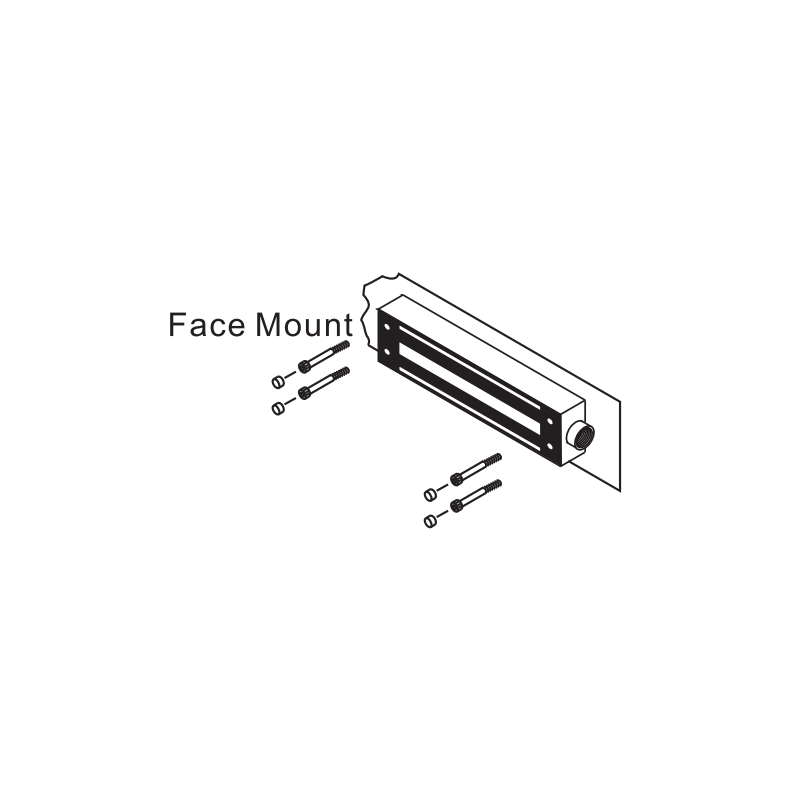

Designed for face mount on in-swing doors or gates
Stainless steel housing suitable for outdoor and severe weather conditions
Magnetic bond sensor indicating locked and unlocked status
Operating Voltage: Single Voltage: 12 or 24VDC, Dual Voltage: 12/24VDC
Current Draw: 500mA/12VDC, 250mA/24VDC at a temperature of 20ºC
Operating Temperature: -10 - 55ºC (14 - 131ºF)
Humidity tolerance: 0~95% non-condensing
Holding Force: Up to 600 lbs (272 Kg)

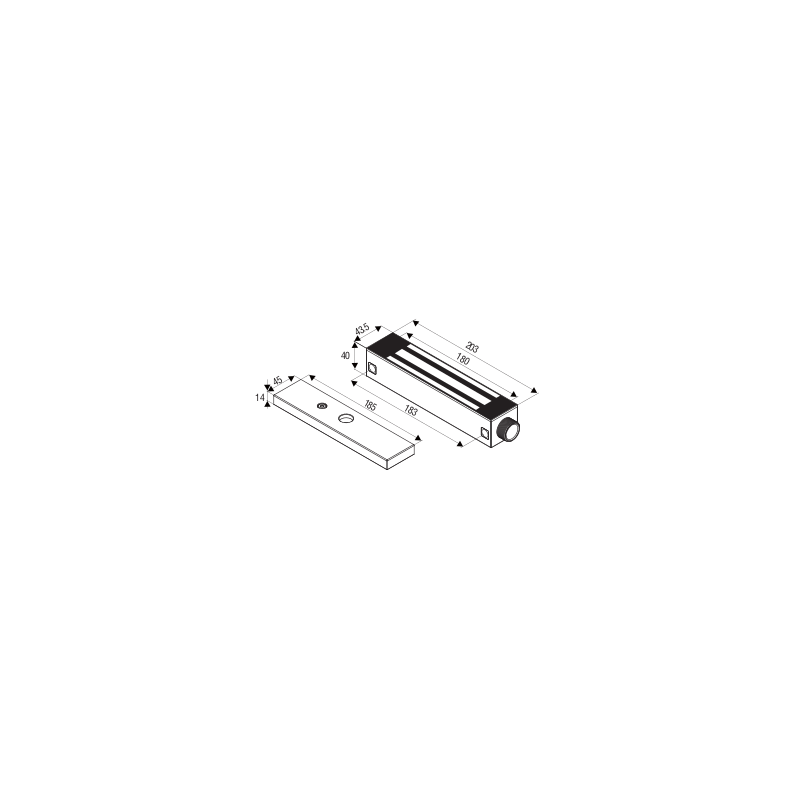

Dimensions:
- Magnet: 203 mm, 43 mm, 40 mm
- Armature Plate: 185 mm, 45 mm, 14 mm
Surface finish for magnet and armature plate: Zinc plated
Epoxy potting compound rating: E87252 (S) UL94V-0
Net Weight: 3.0 Kg
Bond sensor output (GL600R-F): SPDT rated: 0.5A/20VDC
Complies with ANSI / UL 10B and 10C, UBC 7-2 (1997) standards for fire exposure and hose stream tests
