Product title

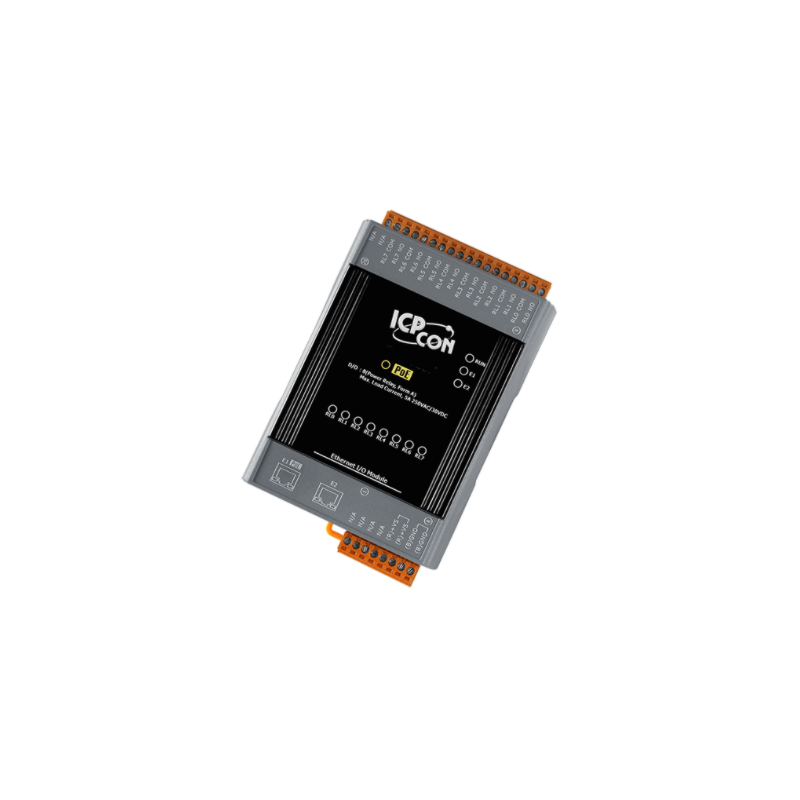

Built-in web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75°C
I/O Pair - second module's input is mirrored to output
8 x Power Relay - electromechanical, COM NO
Relay switching time: on: 10ms, off: 5ms
Relay contact voltage and current: 24VDC/250VAC/5A
Electromechanical: Avoid inductive load
Supply voltage: PoE or 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2 x RJ45 Daisy Chain, only data is continued Further to Dual Watchdog
Operating temperature range: - 25 ~ + 75 ° C
I / O Pair Connection - Input Mirrors to another's output
8 x Power relay - electromechanical, COM NO
Rel becoming: On: 10ms, Off: 5ms
Relay Contact voltage and current: 24VDC / 250VAC / 5A
Electromechanical: Avoid inductive load
supply voltage: POE or 12 - 48VDC

6 x digital inputs - Wet (active at DC input)
6 x Power relay outputs - 24VDC / 250VAC / 5A (COM, NO)
protocol: Modbus TCP / UDP
1 x RJ45 Ethernet Interface
I / O Pair Function - Input Mirrors for the second exit
digital inputs with counter - max 500Hz
Minimum pulse width: 1ms
Screw terminals: 10 - 30vdc / 3Watt

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - daisy chain
Supply voltage: 12 - 48VDC / 4Watt

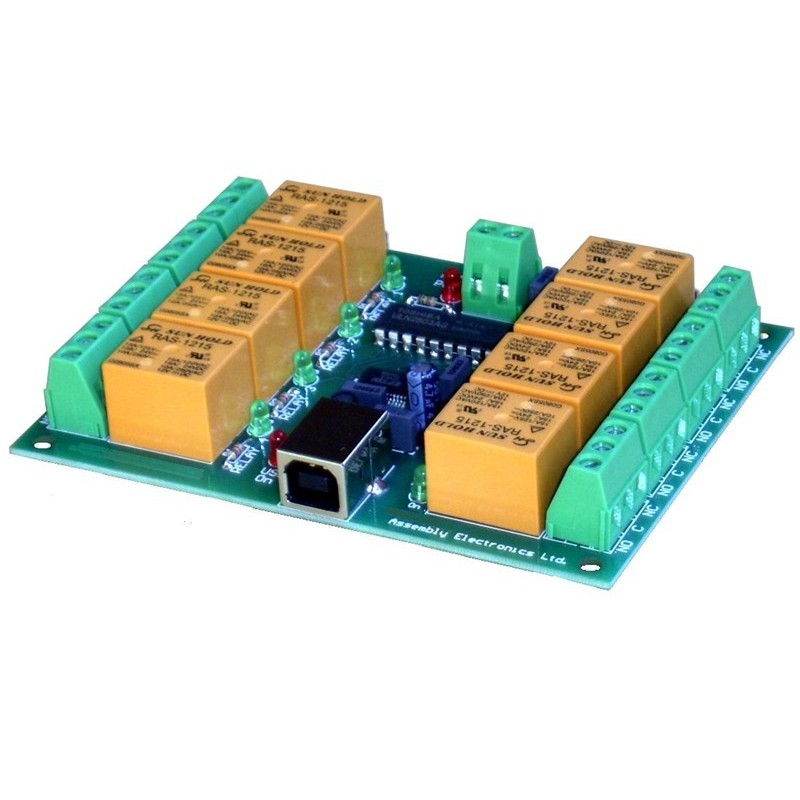

Compact Open Board with 8 relay exits
250V / 10A Only resistive load
Controlled from USB
supply voltage: 5VDC
supply via DC Jack or terminal block
No cabinet

8 final lecturer 250 VAC 5 A
USB type B with screw terminals
USB 2.0 Full-Speed ​​via USB port
Plug-and-Play
PWR / RUN / ERR LED lamps
For YOUR rail mounting
Operating temperature: -25 to + 75 °

The Web server
WEB HMI
Modbus TCP / UDP Modbus
Dual Watchdog
Operating temperature: -25 ~ +75°C
I/O Paie connection - input is mirrored to the other's output
8 x PhotoMOS relay (solid state) COM NO
Relay contact voltage: max 60VDC
Relay contact current: max. 1A
Switching times: on: 5ms, off: 0.3ms
Optical isolation to 3000 Vrms
Supply voltage: 10 - 30VDC / 3watt

Compact open board with 4 relay outputs
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 5VDC
Supply via DC jack or terminal block
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.
