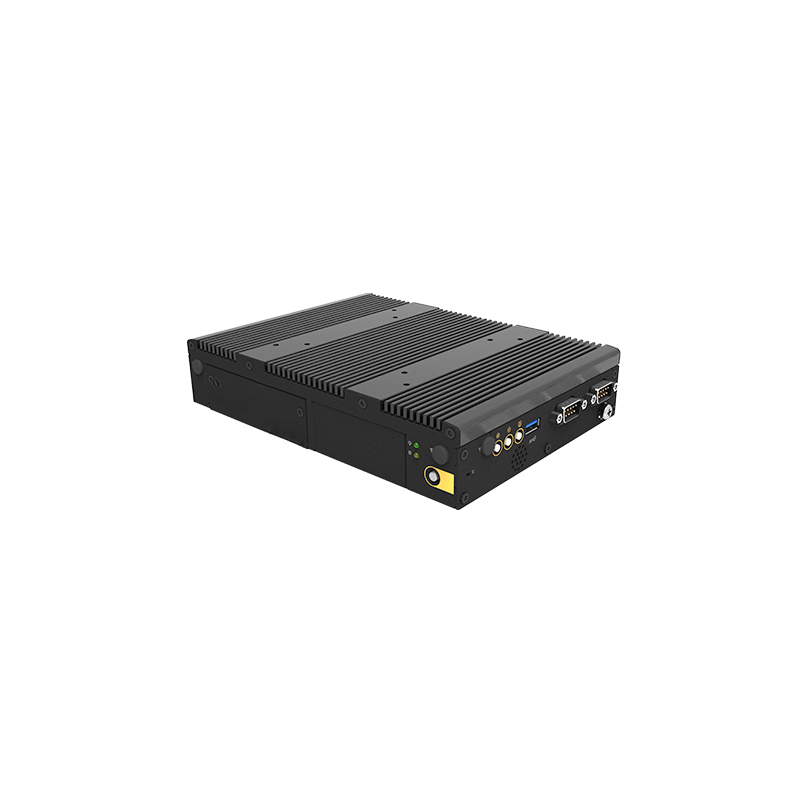

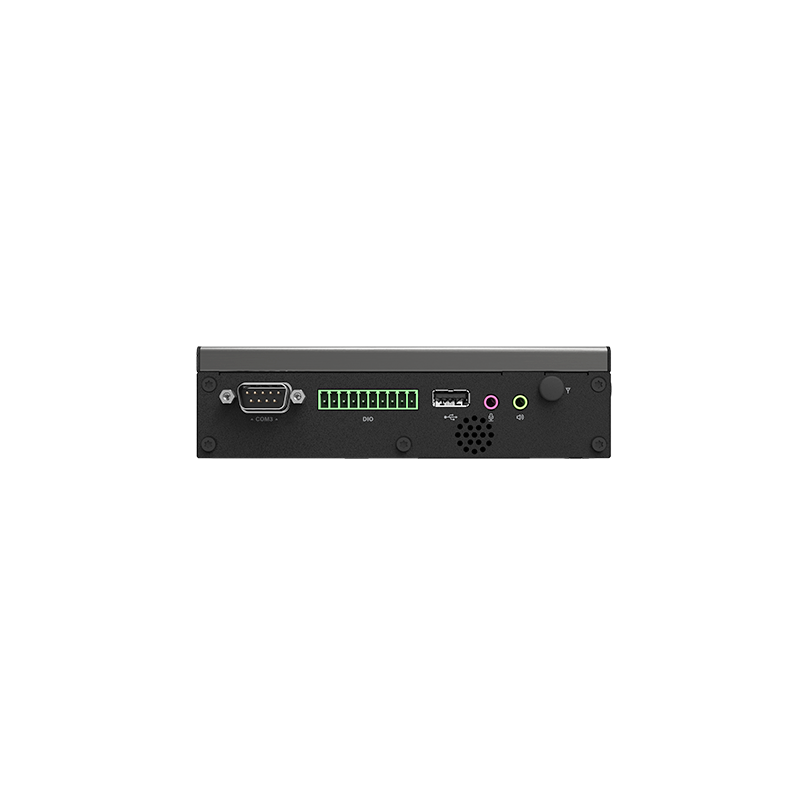

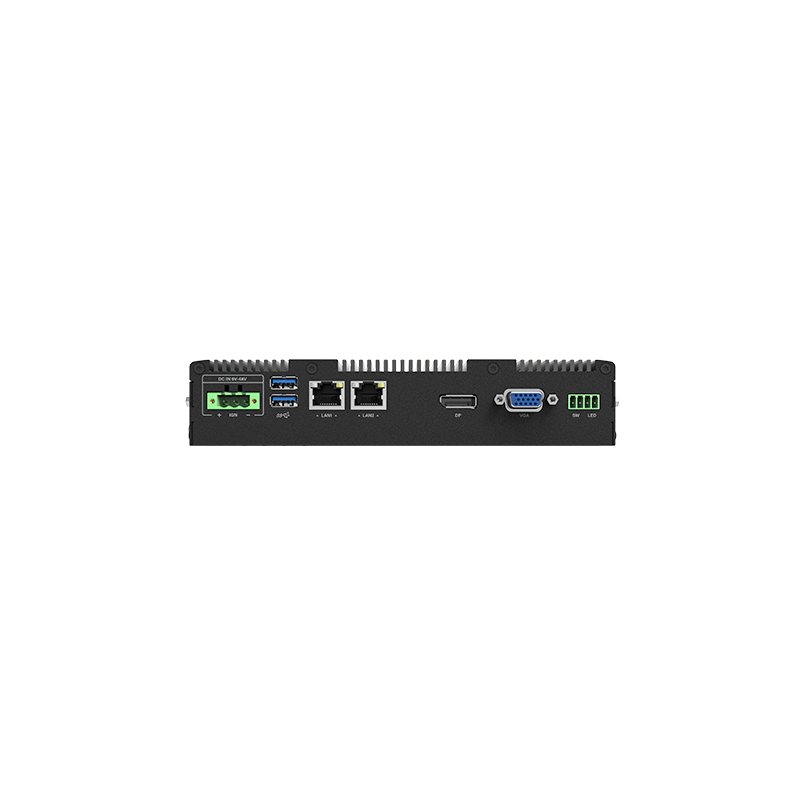

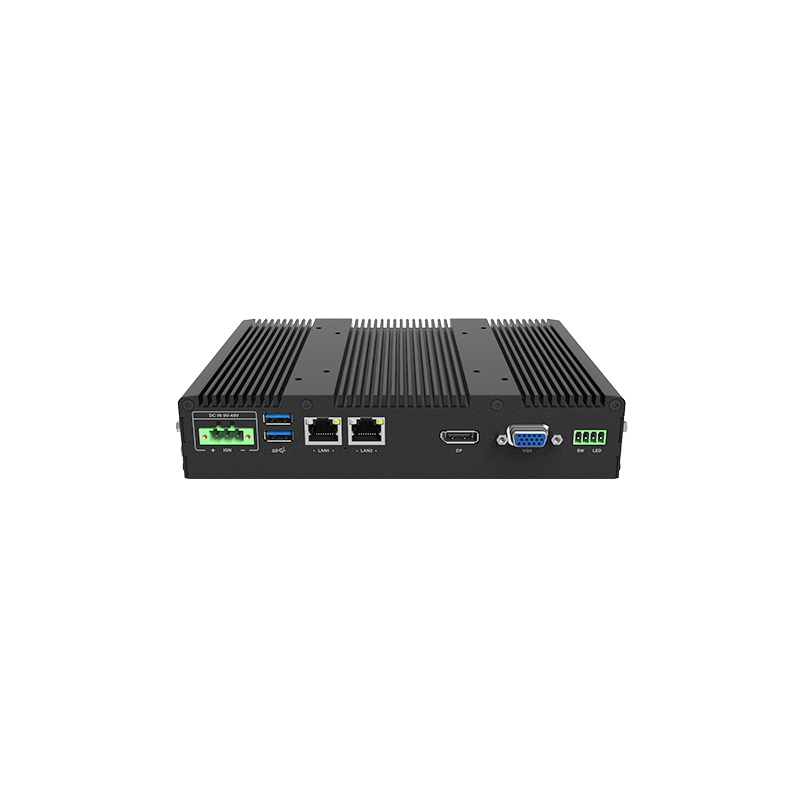

Cincoze P1201-X6425E-R10 embedded Atom X6425E processor, 3xRS232/422/485, 8x isolated I/O, 2x LAN, 4x USB

Embedded PC with Atom X6425E 4 core, TDP 12W, -40°C–70°C, 3XRS232/422/485, 8x Isolated I/O, 2 x LAN, 4x USB, SIM, 9~48Vdc

Name: Embedded PC with Atom X6425E 4 core, TDP 12W, -40°C–70°C, 3XRS232/422/485, 8x Isolated I/O, 2 x LAN, 4x USB, SIM, 9~48Vdc
Brand: Binär Teknik AB
SKU: EPC-ATOM-X6425E
Availability: Discontinued

Intel® Elkhart Lake Atom® x6425E Processor 4-Core
1x DDR4 SO-DIMM, MAX. 32GB
1x M.2 Key E Type 2230 Socket for Intel® CNVi/Wireless Module
Support triple independent display
3x RS232/422/485
2x 1GbE LAN
3x USB 3.2 GEN.2 (10Gbps)
1x USB 2.0
8x Isolated DIO (4xDI, 4xDI)
1x SIM
1x M.2 Type 2230 socket
1x Full Size Mini-PCIe socket
CFM Technology for Power Ignition Sensing Function and PoE Function
EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
Safety Certification: UL, cUL, CB 62368-1
Working temperature -40°C to 70°C (needs special WT RAM)
Dimension 204.5x149x41.5mm
Wall/VESA/CDS/Option: DIN RAIL mount
9 ~48Vdc 3 pin terminal

Call +45 56 66 20 20 for price

Quantity

This product is no longer available for sale.

Product number EPC-ATOM-X6425E

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

The is vibration resistant and incorporates EMC protections to ensure stable and continuous operation in equipment, control cabinets, and mobile equipment.
The PC passes various vibration and shock reliability tests, including random vibration (5G), sinusoidal vibration (1G), and shock resistance (50G), meeting the harsh industrial EMC testing standards (EN 61000-6-2 and EN 61000-6-4), UL certification product safety standard, and high-standard industrial-grade protections.
