Good for mounting directly on the AP

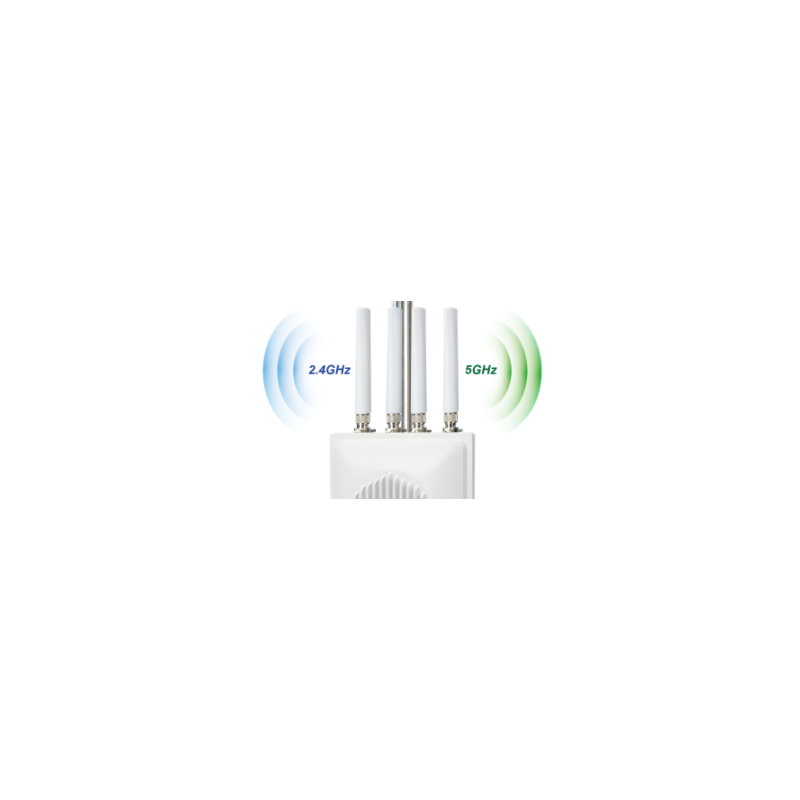

1 pc. Omnidirectional antenna with N male for outdoor Access Point - dual band
Gain: 4.5 dBi at 2.4 GHz and 7 dBi at 5GHz
Vertical: 2.4GHz 80°, 5GHz 55°
Horizontal: 360°
Hard ABS plastic - white
50 ohms
N type male Brass
Temperature-20 - +65℃
Dimensions: ø 23 x L 180 mm
Weight: 65g
| Operating Temp. | -30℃ to + 65℃ |
|---|---|
| Andet | Til inden og udendørs brug |
| Gain | 4.5dBi for 2.4GHz 7dBi for 5GHz |
| Indgangsimpedans | 50 OHM |
| Stik | N-Type han |
| Vertikal spredning | 25° |
| Dimensioner | 180x22mm |
Omni-directional antenna
When mounted vertically, the radiation is almost the same in all directions in the horizontal plane (horizontal dispersion is 360°).
Internally, they consist of a series of vertical dipoles that are in extension of each other. Therefore, they have gain (passive amplification).
When it comes to "point to point" connections, panel or satellite antennas are often the best choice.
