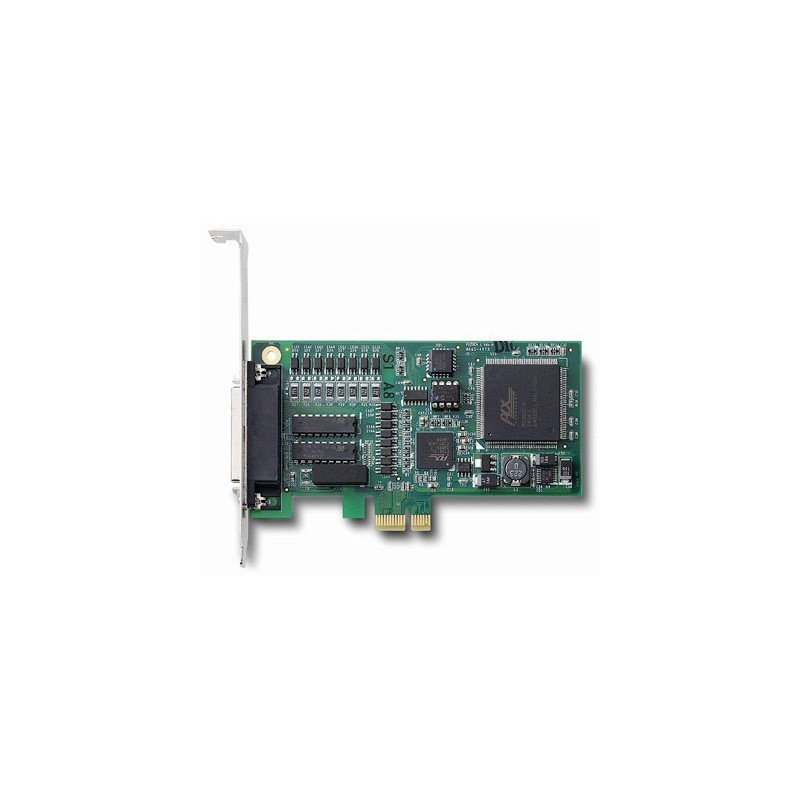

Adlink PCI-7230. 16 kanals isolerede digitale input, 16 kanals isolerede digitale OC-output , PCI Express, Low Profile

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCI Express bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

  • Download PDF
  • email Send til en ven
  • Send til en ven

    Adlink PCI-7230. 16 kanals isolerede digitale input, 16 kanals isolerede digitale OC-output , PCI Express, Low Profile

    Adlink PCI-7230. 16 kanals isolerede digitale input, 16 kanals isolerede digitale OC-output , PCI Express, Low Profile

    16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

    Supports a 32-bit 5 V PCI Express bus - LOW PROFILE CARD
    16-CH isolated digital inputs
    16-CH isolated digital outputs - Open-Collector
    5000 VRMS optical isolation
    Sink current up to 500 mA on each isolated output

    Modtager :

    * Krævede felter

    Fortryd  eller

  • file_download Downloads
  • live_help Stil et spørgsmål
OPTO16I16PCI-LE
2.500,39 SEK
Ekskl. moms
Antal
Status

OPTO16I16PCI-LE (ADLINK"s PCI-7230) is a 32-CH isolated input and/or output cards which provide a 2,500 V optical isolation protection. The wide input range of the OPTO16I16PCI-LE makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The OPTO16I16PCI-LE device also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The OPTO16I16PCI-LE also provide two interrupt sources on digital input channels.

Stik
MiniDB50 med klemmer
Indgange
16 optoisolerede, fælles stel (minus) Logisk 0: 0-1,5 VDC Logisk 1: 5-24 VDC
Udgange
16 optoisolerede, fælles stel (minus) "Open collector" 5-35 VDC Kan trække op til 500 mA til stel
Dimensioner
69 x 120 mm
Software
Drivere til Windows 2000, XP, Win7 og Win8 Labview og Linux medfølger
Isolation
2.500 VDC på ind- og udgange
Indgangsimpedans
1,2 kΩ / 0,5 W
